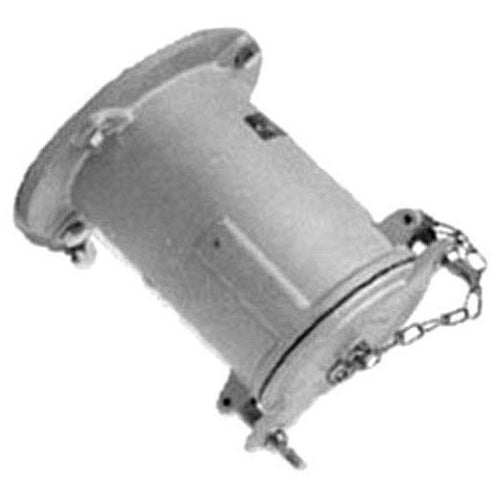

Appleton AR20044 4W-4P Receptacle

Overview

Appleton AR20044 4W-4P Receptacle

Product Specifications

• UPC: 78138113157
• Grounding Style: 1, Shell
• Door Type: Clamp Cover
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Grade: Marine
• Approval: UL 1682/1686/50E, CSA C22.2
• Additional Information: Wire Size 2/0 AWG to 250 MCM; Enclosure Rating NEMA 3/3R/4/4X
• Catalog Number: AR20044
• Brand Name: Powertite[TM]
• Type: Positive Polarized
• Constructional Feature: Corrosion Resistant, Weatherproof
• Voltage Rating: 600 Volt AC at 50 to 400 Hertz, 250 Volt DC
• Current Rating: 200 Amp
• Number Of Poles: 4
• Number Of Wires: 4
• Catalog Description: POWERTITE GROUNDING STYLE 1 RECEPTACLE, NUMBER OF POLES: 4, NUMBER OF WIRES: 4, WIRE SIZE: 2/0 AWG - 250 MCM, AMPERAGE RATING: 200 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXI
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 4 Wire(S); UL 1682, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 200 Amp Current Rating; 4 Pole(S); Weatherproof; Clamp Cover; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Size 1/0 AWG to 250 MCM; Wire Recess Diameter 0.687 Inch; Cable Diameter 0.875 to 2.5 Inch; Enclosure Rating NEMA 3/4/4X; Ambient Temperature Rating -13 to 104 Deg F; Application Generator, Shipping Dock, Port; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781381131575
• SKU Name: app ar20044
