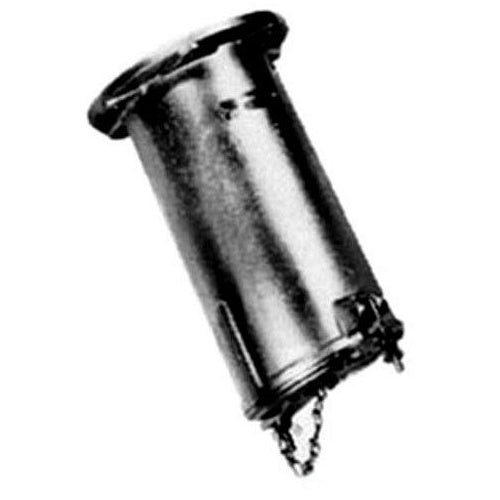

Appleton AR40144RS 4W-4P Receptacle

Overview

Appleton AR40144RS 4W-4P Receptacle

Product Specifications

• UPC: 78138132527
• Grounding Style: 1, SHELL
• Door Type: CLAMP COVER
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM
• Grade: SHIPPING
• Additional Information: APPLICATION CELLULAR RELAY STATION, COMPRESSOR, MOTOR GENERATOR UNIT, PUMP, WELDER
• Catalog Number: AR40144RS
• Brand Name: Powertite.
• Type: POLARIZED, REVERSE SERVICE
• Constructional Feature: RAIN TIGHT
• Voltage Rating: 600 VAC AT 50 TO 400 HZ, 250 VDC
• Current Rating: 400 AMPERE
• Number Of Poles: 4
• Number Of Wires: 4
• Catalog Description: POWERTITE GROUNDING STYLE 1 RECEPTACLE, NUMBER OF POLES: 4, NUMBER OF WIRES: 4, WIRE SIZE: 400 - 1000 MCM, AMPERAGE RATING: 400 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIM
• Category: Pin & Sleeve Devices
• Full Technical Description: Reverse Service Type; Epoxy Powder Coated Copper-Free Aluminum Material; 4 Wire(S); UL 1682, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 400 Amp Current Rating; 4 Pole(S); Weatherproof; Clamp Cover; 1, Shell Grounding Style; Wire Size 400 MCM to 1000 MCM; Wire Recess Diameter 1.25 Inch; Enclosure Rating NEMA 4; Ambient Temperature Rating -13 to 104 Deg F; Application Generator, Shipping Dock, Port; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781381325271
• SKU Name: app ar40144rs
