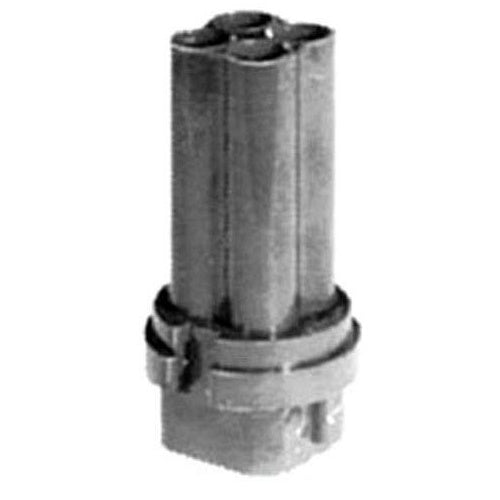

Appleton ARI1044 4W-4P Receptacle

Overview

Appleton ARI1044 4W-4P Receptacle

Product Specifications

• UPC: 78138116634
• Catalog Number: ARI1044
• Brand Name: Appleton.
• Type: RECEPTACLE
• Voltage Rating: 600 VAC AT 50 TO 400 HZ, 250 VDC
• Current Rating: 100 AMPERE
• Number Of Poles: 4
• Number Of Wires: 4
• Grounding Style: 1, SHELL
• Catalog Description: POWERTITE GROUNDING STYLE 1 RECEPTACLE, NUMBER OF POLES: 4, NUMBER OF WIRES: 4, WIRE SIZE: 4 - 1 AWG (BUILDING), 4 - 2 AWG (EXTRA FLEX), AMPERAGE RATING: 100 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COP
• Category: Pin & Sleeve Devices
• Full Technical Description: Receptacle Type; Epoxy Powder Coated Copper-Free Aluminum Material; 4 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz, 250 Volt DC Voltage Rating; 100 Amp Current Rating; 4 Pole(S); 1, Shell Grounding Style; POWERTITE[TM] Brand; Ambient Temperature Rating -30 to 104 Deg F; Enclosure Rating NEMA 3/4/4X; Used With Ebr/Ebrh/Jbr/MD2SR/Fsqc/ID2SR/Dbr Hazardous Interlocked Receptacle; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Device Interior
• Unspsc: 39121406
• UPC 12 Digit: 781381166348
• SKU Name: app ari1044
