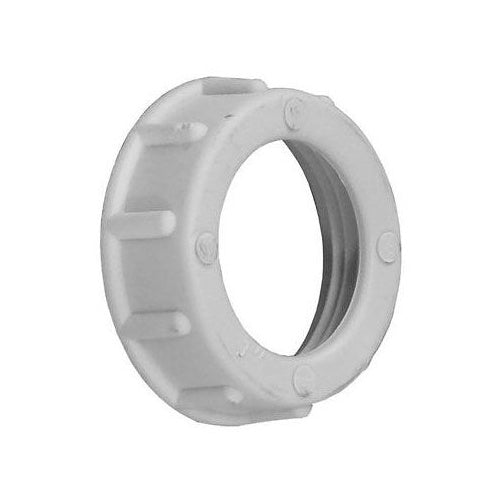

Appleton BBU-200 2" 105D Plastic Bushing

Overview

Appleton BBU-200 2" 105D Plastic Bushing

Product Specifications

• UPC: 78138115595
• Standard Package: 50
• Approval: UL 514B, CSA C22.2
• Used On: IMC/Rigid Conduit
• Catalog Number: BBU-200
• Type: Threaded Female
• Trade Size: 2 Inch
• Diameter: 2.69 Inch
• Height: 0.63 Inch
• Throat Type: Insulated
• Temperature Rating: 105 Deg C
• Material: Plastic
• Catalog Description: CONDUIT BUSHING, SIZE: 2 IN, MATERIAL: PLASTIC, CONNECTION: THREADED, TEMPERATURE RATING: 150 DEG C, DIMENSIONS: 0.63 IN HEIGHT X 2.69 IN DIAMETER, STANDARD: UL 514B, E14814, CSA C22.2 NO. 18.3, CSA 065178, NEMA FB-1, FOR USE WITH LOCKNUT TO TERMINATE RIGID METAL CONDUIT OR IMC TO A BOX OR ENCLOSURE
• Category: Rigid Conduit Fittings - Plastic
• Full Technical Description: Threaded Female Type; Impact Resistant Plastic Material; 0.63 Inch; Imc/Rigid Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 2.69 Inch Diameter; 221 Deg F Temperature Rating; 2 Inch Trade Size; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381155953
• SKU Name: app bbu200
