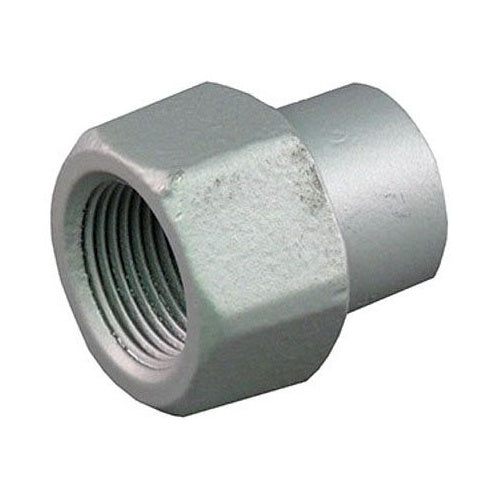

Appleton BR300-200 3X2 Reducer Coupling

Overview

Appleton BR300-200 3X2 Reducer Coupling

Product Specifications

• UPC: 78138131934
• Catalog Number: BR300-200
• Brand Name: UNILETS.
• Model: BR
• Large End Trade Size: 3 INCH
• Small End Trade Size: 2 INCH
• Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED MALLEABLE IRON
• End Style: BELLED
• Enclosure: CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III
• Catalog Description: UNILETS BELL REDUCER COUPLING, TRADE SIZE: LARGE HUB: 3 IN, SMALL HUB: 2 IN, FLEXIBILITY: RIGID AND IMC, MATERIAL: MALLEABLE IRON, CONNECTION: FEMALE THREADED, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), STA
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 2 Inch Small End Trade Size; 3 Inch Large End Trade Size; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Threaded Belled End Style; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; BR Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Reducer Coupling
• Unspsc: 39121311
• UPC 12 Digit: 781381319348
• SKU Name: app br300200

Resources

• Manufacturer Spec Sheet
