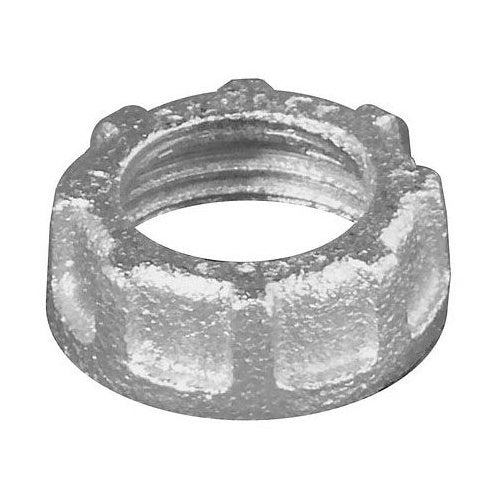

Appleton BU-600 6" Malleable Bushing

Overview

Appleton BU-600 6" Malleable Bushing

Product Specifications

• UPC: 78138116255
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Application Used with a Locknut to Terminate Rigid Metal Conduit or IMC Conduit to a Box or Enclosure
• Catalog Number: BU-600
• Model: BU
• Type: Threaded Female
• Trade Size: 6 Inch
• Diameter: 7.38 Inch
• Height: 1.31 Inch
• Material: Zinc Electroplated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Catalog Description: CONDUIT HARDWARE, BUSHINGS, NON-GROUNDING, TYPE: THREADED, TRADE SIZE: 6 IN, MATERIAL: MALLEABLE IRON
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Female Type; Zinc Electroplated Malleable Iron Material; 1.31 Inch; Imc/Rigid Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 7.38 Inch Diameter; 6 Inch Trade Size; Non-Insulated Throat Type; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381162555
• SKU Name: app bu600

Resources

• Manufacturer Spec Sheet
