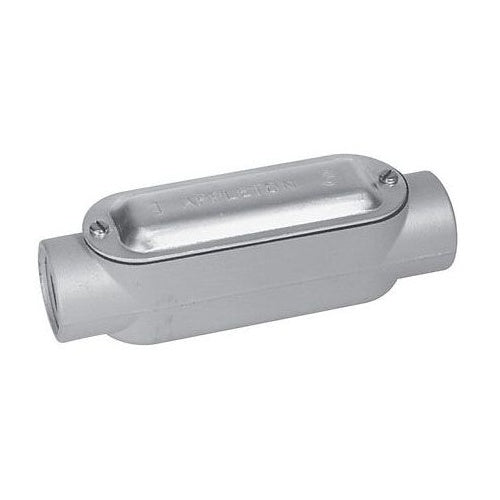

Appleton C-150ACGA Aluminum Conduit Outlet Body

Overview

Appleton C-150ACGA Aluminum Conduit Outlet Body

Product Specifications

• UPC: 78138182621
• Hub Size: 1-1/2 Inch
• Size: 8.56 Inch Length x 2.5 Inch Width x 2.75 Inch Height
• Installation: Threaded
• Material: Epoxy Powder Coated Pressure Cast Copper-Free Aluminum (Body), Neoprene/Fiber (Gasket), Stainless Steel (Screw)
• Form Type: Form 85
• Approval: UL 514A/B, CSA C22.2, NEC, CEC
• Used On: IMC/Rigid Conduit
• Additional Information: Capacity 35 Cubic Inch; Includes Cover, Gasket; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conductors f
• Catalog Number: C-150ACGA
• Brand Name: Appleton
• Model: C
• Access Opening: Side
• Configuration: C
• Cover Type: Epoxy Powder Coated Cast Aluminum
• Hub Location: Straight
• Number Of Hubs: 2
• Catalog Description: FORM 85 UNILETS TYPE C CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 1-1/2 IN, FORM: 85, LENGTH: 8.56 IN, WIDTH: 2-1/2 IN, HEIGHT: 2-3/4 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPER
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Enamel Copper-Free Aluminum (Body), Neoprene (Gasket) Material; 8.56 Inch Length X 2.5 Inch Width X 2.75 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL 514A, CSA C22.2 Approval; Epoxy Powder Coated Enamel Copper-Free Aluminum Cover Type; Straight Hub Location; Form 85 Form Type; Side Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 1/0 AWG; Enclosure Rating Class I Div 2/2.1; Includes Assembled Cover and Gasket; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381826211
• SKU Name: app c150acga
