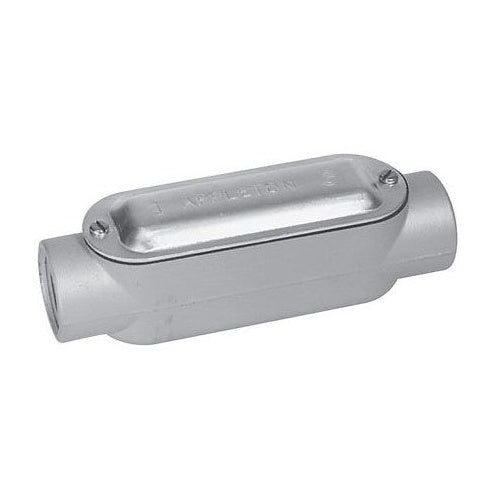

Appleton C150T-A 1-1/2" Aluminum C-Type Body

Overview

Appleton C150T-A 1-1/2" Aluminum C-Type Body

Product Specifications

• UPC: 78138116545
• Size: 8.56 INCH L X 2.5 INCH W X 2.75 INCH H
• Installation: SET SCREW
• Material: PRESSURE CAST COPPER FREE ALUMINUM ALLOY BODY, FIBER/NEOPRENE GASKET
• Form Type: FORM 85
• Used On: EMT CONDUIT
• Additional Information: FEDERAL SPECIFICATION W-C-586B
• Catalog Number: C150T-A
• Brand Name: Unilet.
• Access Opening: SIDE
• Configuration: C
• Cover Type: EPOXY POWDER COATED CAST COPPER FREE ALUMINUM ALLOY
• Hub Location: STRAIGHT
• Number Of Hubs: 2
• Hub Size: 1-1/2 INCH
• Catalog Description: IMC/RIGID CONDUIT BODY, ACCESS OPENING SIDE, CONFIGURATION C, COVER TYPE EPOXY POWDER COATED COPPER FREE ALUMINUM, HUB LOCATION STRAIGHT, NUMBER OF HUBS 2, HUB SIZE 1-1/2 INCH, SIZE 8.56 INCH L X 2.5 INCH W X 2.75 INCH H, INSTALLATION SET SCREW, MATERIAL EPOXY POWDER COATED PRESSURE CAST COPPER FREE ALUMINUM BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW, FORM TYPE FORM 85, APPROVAL UL 514A/514B/E2527, CSA C22.2, USED ON EMT CONDUIT, APPLICABLE STANDARD NEC/CEC, NEMA FB-1, CAPACITY 35 CU INCH
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 8.56 Inch Length X 2.5 Inch Width X 2.75 Inch Height Size; EMT Conduit Used on; 1-1/2 Inch Hub Size; Set Screw Installation; C Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; Straight Hub Location; Form 85 Form Type; Side Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 1/0 AWG; Capacity 35 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381165457
• SKU Name: app c150ta
