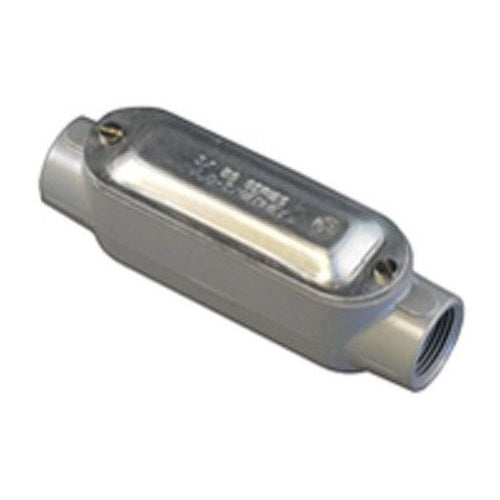

Appleton C-75ACGA 3/4" Aluminum Conduit Outlet Body

Overview

Appleton C-75ACGA 3/4" Aluminum Conduit Outlet Body

Product Specifications

• UPC: 78138182618
• Hub Size: 3/4 Inch
• Size: 5.63 Inch Length x 1.56 Inch Width x 1.63 Inch Height
• Installation: Threaded
• Material: Epoxy Powder Coated Pressure Cast Copper-Free Aluminum (Body), Neoprene/Fiber (Gasket), Stainless Steel (Screw)
• Form Type: Form 85
• Approval: UL 514A/B, CSA C22.2, NEC, CEC
• Used On: IMC/Rigid Conduit
• Additional Information: Includes Cover, Gasket; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conductors for Maintenance
• Catalog Number: C-75ACGA
• Brand Name: Appleton
• Model: C
• Access Opening: Side
• Configuration: C
• Cover Type: Epoxy Powder Coated Cast Aluminum
• Hub Location: Straight
• Number Of Hubs: 2
• Catalog Description: FORM 85 UNILETS TYPE C CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 3/4 IN, FORM: 85, LENGTH: 5.63 IN, WIDTH: 1.56 IN, HEIGHT: 1.63 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FE
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Enamel Copper-Free Aluminum (Body), Neoprene (Gasket) Material; 5.63 Inch Length X 1.56 Inch Width X 1.63 Inch Height Size; Imc/Rigid Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL 514A, CSA C22.2 Approval; Epoxy Powder Coated Enamel Copper-Free Aluminum Cover Type; Straight Hub Location; Form 85 Form Type; Side Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 6 AWG; Enclosure Rating Class I Div 2/2.1; Includes Assembled Cover and Gasket; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381826181
• SKU Name: app c75acga
