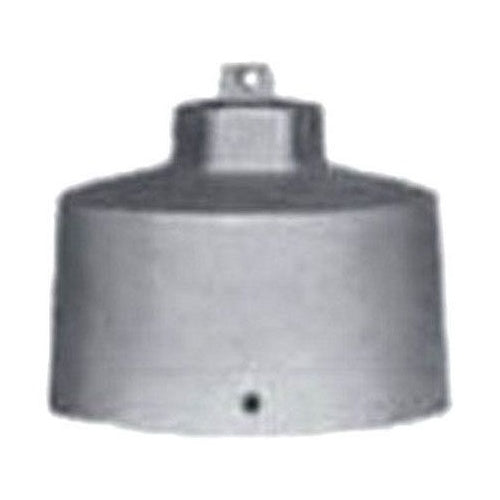

Appleton CAP100 Pendant Mounting Hood

Overview

Appleton CAP100 Pendant Mounting Hood

Product Specifications

• UPC: 78138151168
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 844/1598
• Catalog Number: CAP100
• Brand Name: Code.Master Jr.[TM]
• Type: Pendant
• Constructional Feature: Explosionproof, Dust Ignitionproof
• Number Of Hubs: 1
• Hub Size: 1 Inch
• Material: Die-Cast Copper Free Aluminum
• Finish: Electrostatically Applied Epoxy Powder Coated
• Catalog Description: MOUNTING HOOD, SIZE: 1 IN HUB, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, LAMP TYPE: INCANDESCENT, MOUNTING: PENDANT, FINISH: EPOXY POWDER COAT, FOR CODE MASTER INCANDESCENT FACTORY SEALED LUMINAIRES
• Category: Lighting Accessories
• Full Technical Description: Pendant Type; Copper-Free Cast Aluminum Material; Electrostatically Applied Baked Gray Epoxy Clad Finish; 1 Inch Threaded Hub Size; 1 Hub(S); UL 50/50E/844/1598/1598A/8750, UL (Canada and Us), CSA (Canada and Us), CSA C22.2 Approval; Class I Div 1 and 2 Group B C D Enclosure; Explosionproof, Dust Ignitionproof; Used on Code Master LED Luminaire; Application Chemical, Oil/Gas/Petrochemical, Pulp/Paper, Foundry, Waste/Sewage Treatment, Pharmaceutical, Mining, Power Generation, Paint Spray Booth, Hydrogen/Biofuel Plant, Liquid Natural Gas Plant; Applicable Standard Nec/Cec, Ansi/Iec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof HID Fixture Mounting Hood
• Unspsc: 39111817
• UPC 12 Digit: 781381511681
• SKU Name: app cap100

Resources

• Manufacturer Spec Sheet
