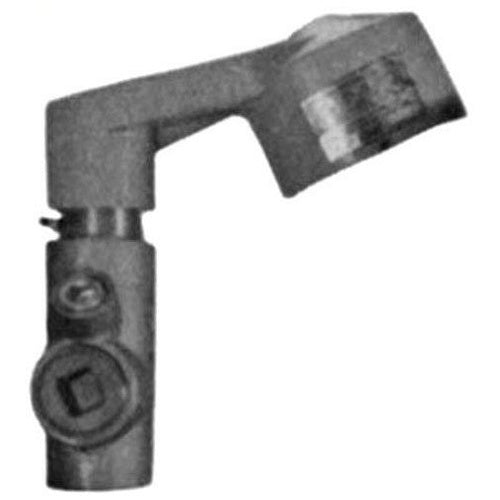

Appleton CAS150B 1-1/2" Standard Mounting Hood

Overview

Appleton CAS150B 1-1/2" Standard Mounting Hood

Product Specifications

• UPC: 78138162059
• Material: SAND CAST COPPER FREE ALUMINUM
• Finish: ELECTROSTATICALLY APPLIED EPOXY POWDER COATED
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III
• Approval: UL 844, UL 1598-A
• Hub Size In Inch Uom: in
• Catalog Number: CAS150B
• Brand Name: Master Jr.[T]
• Type: 25 DEG STANCHION
• Constructional Feature: EXPLOSION PROOF, DUST IGNITION PROOF
• Number Of Hubs: 1
• Hub Size: 1-1/2 INCH
• Hub Size In Inch: 1.5
• Hub Size Fractional: 1-1/2
• Catalog Description: MOUNTING HOOD, SIZE: 1-1/2 IN HUB, MATERIAL: SAND CAST COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, LAMP TYPE: CFL, MOUNTING: 25 DEG STANCHION, FINISH: EPOXY POWDER COAT, FOR CODE MASTER PLT FACTORY SEALED LUMINAIRES
• Category: Lighting Accessories
• Full Technical Description: 25 Degree Stanchion Type; Copper-Free Cast Aluminum Material; Electrostatically Applied Baked Gray Epoxy Clad Finish; 1-1/2 Inch Threaded Hub Size; 1 Hub(S); UL 50/50E/844/1598/1598A/8750, UL (Canada and Us), CSA (Canada and Us), CSA C22.2 Approval; Class I Div 1 and 2 Group B C D Enclosure; Explosionproof, Dust Ignitionproof; Used on Code Master LED Luminaire; Application Chemical, Oil/Gas/Petrochemical, Pulp/Paper, Foundry, Waste/Sewage Treatment, Pharmaceutical, Mining, Power Generation, Paint Spray Booth, Hydrogen/Biofuel Plant, Liquid Natural Gas Plant; Applicable Standard Nec/Cec, Ansi/Iec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof HID Fixture Mounting Hood
• Unspsc: 39111817
• UPC 12 Digit: 781381620598
• SKU Name: app cas150b

Resources

• Manufacturer Spec Sheet
