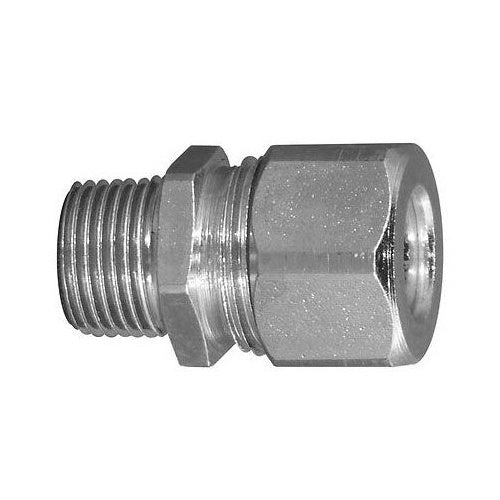

Appleton CG-112125 1-1/4" Aluminum Straight Cord Connector

Overview

Appleton CG-112125 1-1/4" Aluminum Straight Cord Connector

Product Specifications

• UPC: 78138119210
• Application: Liquidtight, Strain Relief, Dry/Wet/Hazardous Location
• Additional Information: Color Brown
• Catalog Number: CG-112125
• Model: CG
• Type: Straight Male
• Thread Size: 1-1/4 Inch
• Material: Aluminum Body, Copper Free Aluminum Cap, Neoprene Grommet, Steel/Teflon Washer
• Cord Size: 1.125 to 1.25 Inch
• Size: 2.13 Inch Dia
• Approval: UL 514B, CSA C22.2
• Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1-1/4 IN, CONDUCTOR RANGE: 1-1/8 - 1-1/4 IN, MATERIAL: ALUMINUM, COLOR: BROWN LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, DIMENSIONS: 2.13 IN HEIGHT, STANDARD: CLASS I, DIVI
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 2.13 Inch Diameter Size; CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 1-1/4 Inch Thread Size; 1.125 to 1.25 Inch Cord Size; Label Color Code Brown; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381192101
• SKU Name: app cg112125 1.1251.250

Resources

• Manufacturer Spec Sheet
