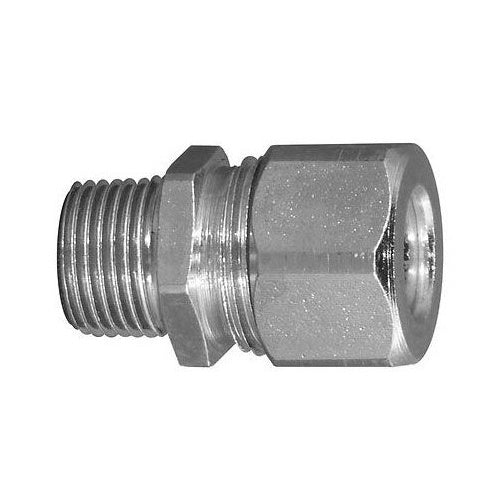

Appleton CG-115150S 1-1/2" Aluminum Straight Cord Connector

Overview

Appleton CG-115150S 1-1/2" Aluminum Straight Cord Connector

Product Specifications

• UPC: 78138146008
• Catalog Number: CG-115150S
• Model: CG
• Type: Straight
• Trade Size: 1-1/2 Inch
• Material: Machined Steel (Body/Cap), Neoprene (Sealing Grommet), Steel (Washer)
• Approval: UL, CSA
• Used On: Wet/Dry Location Sealing Electrical Connection
• Additional Information: Cable Range 1.156 to 1.312 Inch; Diameter 2.19 Inch; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC
• Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1-1/2 IN, CONDUCTOR RANGE: 1.156 - 1.3125 IN, MATERIAL: MACHINED STEEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, DIMENSIONS: 2.19 IN HEIGHT, STANDARD: CLASS I, DIVISION 2, CLAS
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Machined Steel (Body/Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 2.19 Inch Diameter Size; UL 514B, CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 1-1/2 Inch Thread Size; 1.156 to 1.312 Inch Cord Size; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381460088
• SKU Name: app cg115150s

Resources

• Manufacturer Spec Sheet
