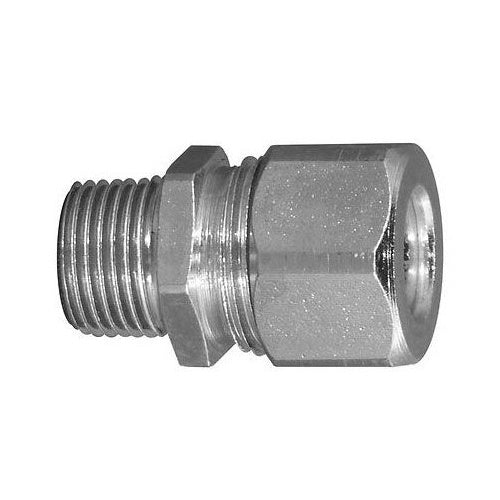

Appleton CG-1250 1/2" Aluminum Straight Cord Connector

Overview

Appleton CG-1250 1/2" Aluminum Straight Cord Connector

Product Specifications

• UPC: 78138119095
• Catalog Number: CG-1250
• Model: CG
• Type: Straight
• Trade Size: 1/2 Inch
• Material: Aluminum (Body/Cap), Neoprene (Sealing Grommet), Steel (Washer)
• Approval: UL, CSA
• Used On: Wet/Dry Location Sealing Electrical Connection
• Additional Information: Cable Range 0.125 to 0.187 Inch; Diameter 0.94 Inch; Color Coded Label Red; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC
• Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1/2 IN, CONDUCTOR RANGE: 1/8 - 3/16 IN, MATERIAL: ALUMINUM, COLOR: RED LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, DIMENSIONS: 0.94 IN HEIGHT, STANDARD: CLASS I, DIVISION 2, C
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 0.94 Inch Diameter Size; CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 1/2 Inch Thread Size; 0.125 to 0.187 Inch Cord Size; Label Color Code Red; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381190954
• SKU Name: app cg1250 .125.187

Resources

• Manufacturer Spec Sheet
