Appleton cg2575s

Overview

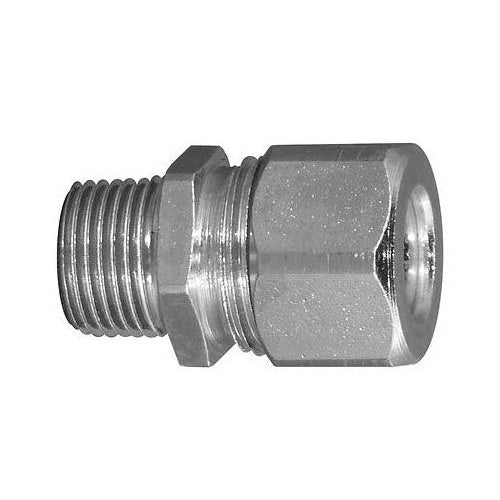

CG2575S - 3/4" STL STR Cord Conn

Product Specifications

• Catalog Number: CG2575S
• UPC / GTIN: 781381449298
• Manufacturer: Appleton
• UNSPSC: 39121431 - Cable gland connector
• Full Technical Description: Straight Liquidtight Strain Relief Connector, Size: 3/4 IN, Conductor Range: 1/4 - 3/8 IN, Material: Machined Steel, Color: Green Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 1-1/4 IN Height, Standard: Class I, Divi
• Connection: Threaded Hub
• Color: Green
• Size: 3/4
• Description: 3/4" STL STR CORD CONN
• Extra Long Description: APP CG-2575S 3/4 IN STL L-T CRD&CBL
• Long Description: Straight Liquidtight Strain Relief Connector, Size: 3/4 IN, Conductor Range: 1/4 - 3/8 IN, Material: Machined Steel, Color: Green Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 1-1/4 IN Height, Standard: Class I, Divi
• Product Type: 3/4 In STL L-T CRD&CBL Conn
• Special Features: Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed;For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture;Machined steel cap;Neoprene sealing grommet;Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord;Steel or Tefl
• Manufacturers Part Number: CG-2575S
• GTIN: 00781381449298
• UPC: 781381449298
• Type: Straight Liquidtight Strain Relief Connector
• Weight per each: 0.25
• Carton: 1
• Package: 25
• Application: For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
• Nema Rating: 3R
• Standard: Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178
