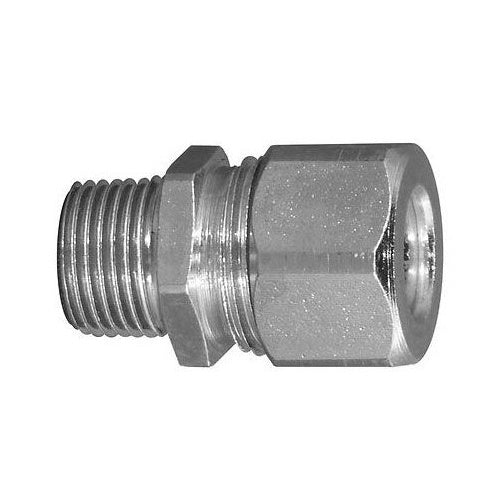

Appleton CG-268300 3" 2.687-3.062 Connector

Overview

Appleton CG-268300 3" 2.687-3.062 Connector

Product Specifications

• UPC: 78138144831
• Application: Liquid Tight, Strain Relief, Dry/Wet Location
• Additional Information: Enclosure Type NEMA 3R
• Catalog Number: CG-268300
• Model: CG
• Type: Straight Male
• Thread Size: 3 Inch
• Material: Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer)
• Cord Size: 2.687 to 3.062 Inch
• Size: 4.5 Inch Diameter
• Approval: UL 514B
• Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 3 IN, CONDUCTOR RANGE: 2-11/16 - 3.062 IN, MATERIAL: ALUMINUM, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, DIMENSIONS: 4.5 IN HEIGHT, STANDARD: CLASS I, DIVISION 2, CLASS II, DIVIS
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 4.5 Inch Diameter Size; UL 514B Approval; Dry/Wet Location, Commercial and Industrial Application; 3 Inch Thread Size; 2.687 to 3.062 Inch Cord Size; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381448314
• SKU Name: app cg268300
