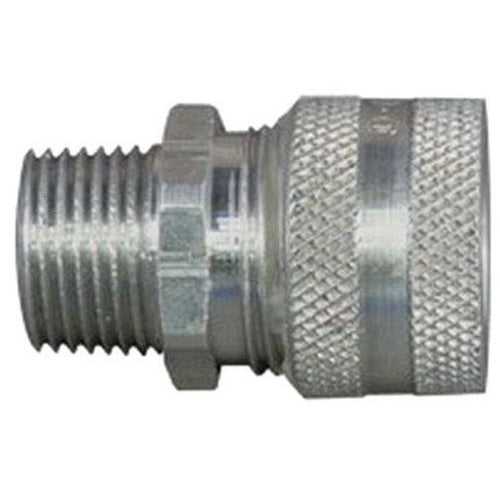

Appleton CG-3138 3/8 Aluminum Straight Cord Connector

Overview

Appleton CG-3138 3/8 Aluminum Straight Cord Connector

Product Specifications

• UPC: 78138119120
• Application: Dry/Wet Location
• Catalog Number: CG-3138
• Model: CG
• Type: Straight
• Thread Size: 3/8 Inch
• Material: Yellow Aluminum
• Cord Size: 0.312 to 0.437 Inch
• Size: 0.94 Inch Diameter x 5.5 Inch Length
• Approval: UL 514B, CSA C22.2
• Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 3/8 IN, CONDUCTOR RANGE: 5/16 - 7/16 IN, MATERIAL: ALUMINUM, COLOR: YELLOW LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, DIMENSIONS: 0.94 IN HEIGHT, STANDARD: CLASS I, DIVISION
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 0.94 Inch Diameter Size; UL 514B, CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 3/8 Inch Thread Size; 0.312 to 0.437 Inch Cord Size; Label Color Code Yellow; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381191203
• SKU Name: app cg3138

Resources

• Manufacturer Spec Sheet
