Appleton cg3150s

Overview

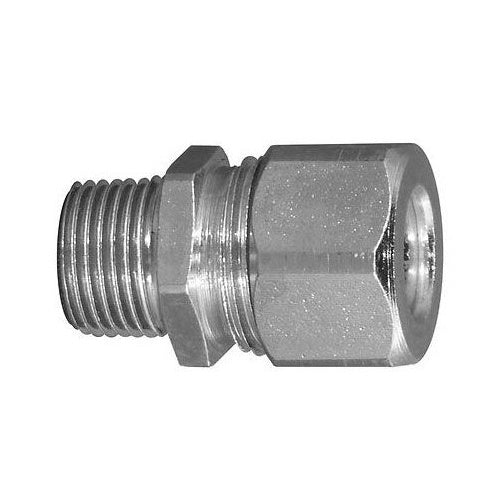

CG3150S - 1/2" STL STR Cord Conn

Product Specifications

• Catalog Number: CG3150S
• UPC / GTIN: 781381449328
• Manufacturer: Appleton
• UNSPSC: 39121431 - Cable gland connector
• Full Technical Description: Straight Liquidtight Strain Relief Connector, Size: 1/2 IN, Conductor Range: 5/16 - 7/16 IN, Material: Machined Steel, Color: Yellow Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 0.94 IN Height, Standard: Class I, Di
• Connection: Threaded Hub
• Color: Yellow
• Size: 1/2
• Description: 1/2" STL STR CORD CONN
• Extra Long Description: APP CG-3150S 1/2 IN STL L-T CRD&CBL
• Long Description: Straight Liquidtight Strain Relief Connector, Size: 1/2 IN, Conductor Range: 5/16 - 7/16 IN, Material: Machined Steel, Color: Yellow Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 0.94 IN Height, Standard: Class I, Di
• Product Type: 1/2 In STL L-T CRD&CBL Conn
• Special Features: Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed;For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture;Machined steel cap;Neoprene sealing grommet;Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord;Steel or Tefl
• Manufacturers Part Number: CG-3150S
• GTIN: 00781381449328
• UPC: 781381449328
• Type: Straight Liquidtight Strain Relief Connector
• Weight per each: 0.14
• Carton: 25
• Application: For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
• Nema Rating: 3R
• Standard: Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178
