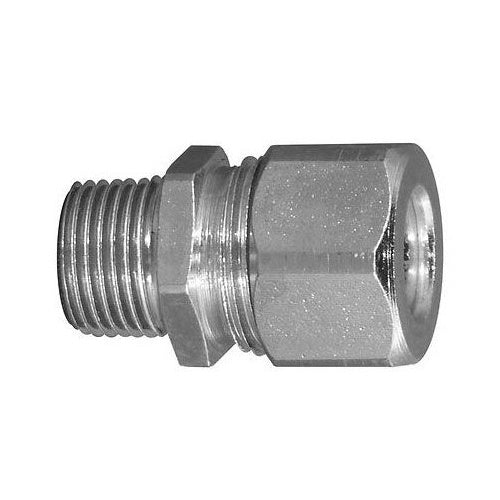

Appleton CG-62100 1" Aluminum Straight Cord Connector

Overview

Appleton CG-62100 1" Aluminum Straight Cord Connector

Product Specifications

• UPC: 78138119175
• Approval: UL 514B, CSA C22.2
• Application: Liquidtight, Strain Relief, Dry/Wet Location
• Additional Information: Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Color Orange
• Catalog Number: CG-62100
• Brand Name: Appleton
• Model: CG
• Type: Straight Male
• Thread Size: 1 Inch
• Material: Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer)
• Cord Size: 0.625 to 0.75 Inch
• Size: 1.38 Inch Diameter
• Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1 IN, CONDUCTOR RANGE: 5/8 - 3/4 IN, MATERIAL: ALUMINUM, COLOR: ORANGE LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, DIMENSIONS: 1.38 IN HEIGHT, STANDARD: CLASS I, DIVISION 2,
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 1.38 Inch Diameter Size; UL 514B, CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 1 Inch Thread Size; 0.625 to 0.75 Inch Cord Size; Label Color Code Orange; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381191753
• SKU Name: app cg62100

Resources

• Manufacturer Spec Sheet
