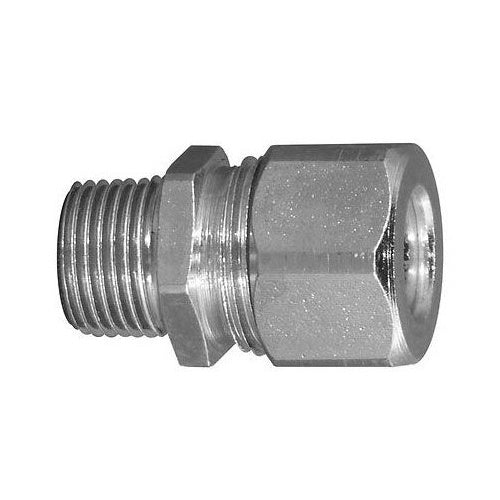

Appleton CG-75125S 1-1/4" Steel Straight Cord Connector

Overview

Appleton CG-75125S 1-1/4" Steel Straight Cord Connector

Product Specifications

• UPC: 78138144947
• Application: Liquidtight, Strain Relief, Dry/Wet/Hazardous Location
• Additional Information: Color Gray
• Catalog Number: CG-75125S
• Model: CG
• Type: Straight Male
• Thread Size: 1-1/4 Inch
• Material: Machined Steel Body/Cap, Neoprene Grommet, Steel/Teflon Washer
• Cord Size: 0.75 to 0.875 Inch
• Size: 1.75 Inch Dia
• Approval: UL 514B, CSA C22.2
• Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1-1/4 IN, CONDUCTOR RANGE: 3/4 - 7/8 IN, MATERIAL: MACHINED STEEL, COLOR: GRAY LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, DIMENSIONS: 1-3/4 IN HEIGHT, STANDARD: CLASS I, DI
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Machined Steel (Body/Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 1.75 Inch Diameter Size; UL 514B, CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 1-1/4 Inch Thread Size; 0.75 to 0.875 Inch Cord Size; Label Color Code Gray; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381449472
• SKU Name: app cg75125s
