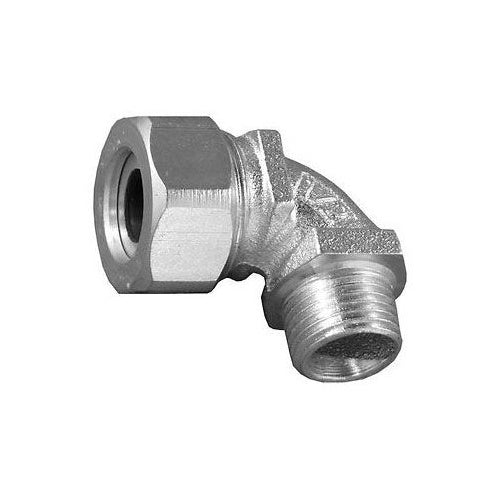

Appleton CG90-112125 1-1/4" Aluminum 90D Cord Connector

Overview

Appleton CG90-112125 1-1/4" Aluminum 90D Cord Connector

Product Specifications

• UPC: 78138119040
• Application: DRY/WET LOCATION, LIQUID TIGHT, STRAIN RELIEF
• Catalog Number: CG90-112125
• Brand Name: Appleton[R]
• Type: 90 DEG
• Thread Size: 1-1/4 INCH
• Material: CAST ALUMINUM BODY, COPPER FREE ALUMINUM CAP, NEOPRENE SEALING GROMMET, STEEL/NON-STKWASHER
• Cord Size: 1.125 TO 1.25 INCH
• Size: 2-1/8 INCH DIA X 2-7/16 INCH L
• Approval: UL
• Catalog Description: LIQUIDTIGHT CORD AND CABLE CONNECTOR, TYPE 90 DEG, THROAT TYPE NON-INSULATED, TRADE SIZE 1-1/4 INCH, MATERIAL CAST ALUMINUM, APPROVAL UL 514B, CSA C22.2, USED ON LIQUIDTIGHT CORD AND CABLE, CORD SIZE 1.125 TO 1.25 INCH, SIZE 2-1/8 INCH DIA X 2-7/16 INCH L, APPLICATION DRY/WET LOCATION, LIQUIDTIGHT, STRAIN RELIEF
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Male Type; Cast Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 2.13 Inch Diameter Size; UL 514B Approval; Dry/Wet Location, Commercial and Industrial Application; 1-1/4 Inch Thread Size; 1.125 to 1.25 Inch Cord Size; Label Color Code Brown; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381190404
• SKU Name: app cg90112125

Resources

• Manufacturer Spec Sheet
