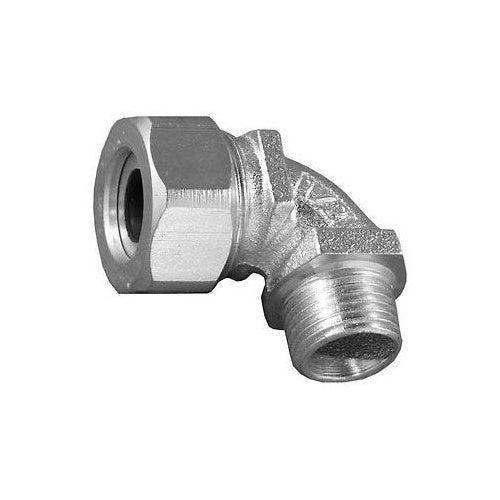

Appleton CG90-1238 3/8 Aluminum 90D Cord Connector

Overview

Appleton CG90-1238 3/8 Aluminum 90D Cord Connector

Product Specifications

• UPC: 78138118920
• Application: Liquidtight, Strain Relief, Dry/Wet/Hazardous Location
• Additional Information: Color Red
• Catalog Number: CG90-1238
• Model: CG90
• Type: 90 Deg Male
• Thread Size: 3/8 Inch
• Material: Cast Aluminum Body, Copper Free Aluminum Cap, Neoprene Grommet, Steel/Teflon Washer
• Cord Size: 0.125 to 0.187 Inch
• Size: 0.94 Inch Dia
• Approval: CSA C22.2
• Catalog Description: CORD AND CABLE CONNECTOR, TYPE 90 DEG, THREAD SIZE 3/8 INCH, MATERIAL CAST ALUMINUM BODY, COPPER FREE ALUMINUM CAP, NEOPRENE GROMMET, STEEL/TEFLON WASHER, CORD SIZE 0.125 TO 0.187 INCH, SIZE 0.94 INCH DIA, APPROVAL UL 514B, CSA C22.2, APPLICATION LIQUIDTIGHT, STRAIN RELIEF, DRY/WET/HAZARDOUS LOCATION, COLOR RED, ENCLOSURE TYPE CLASS I DIV 2, CLASS II DIV 1 AND 2, CLASS III
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Male Type; Cast Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 0.94 Inch Diameter Size; CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 3/8 Inch Thread Size; 0.125 to 0.187 Inch Cord Size; Label Color Code Red; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381189200
• SKU Name: app cg901238
