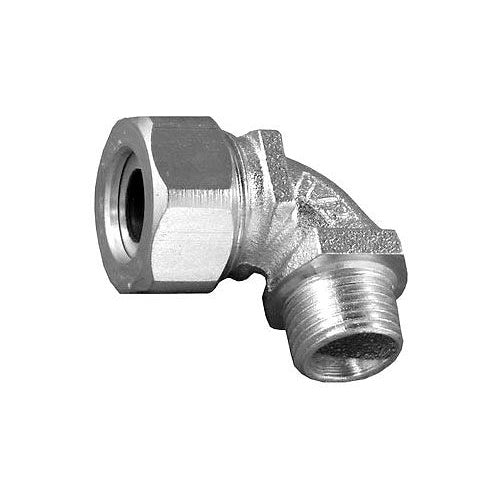

Appleton CG90-3138S 3/8 Steel 90D Cord Connector

Overview

Appleton CG90-3138S 3/8 Steel 90D Cord Connector

Product Specifications

• UPC: 78138144901
• Application: DRY/WET LOCATION, LIQUID TIGHT, STRAIN RELIEF
• Catalog Number: CG90-3138S
• Brand Name: Appleton[R]
• Type: 90 DEG
• Thread Size: 3/8 INCH
• Material: MACHINED STEEL BODY/CAP, NEOPRENE SEALING GROMMET, STEEL/NON-STKWASHER
• Cord Size: 0.312 TO 0.437 INCH
• Size: 1-5/16 INCH DIA X 1-5/8 INCH L
• Approval: UL
• Catalog Description: LIQUIDTIGHT CORD AND CABLE CONNECTOR, TYPE STRAIGHT, THROAT TYPE NON-INSULATED, TRADE SIZE 3/8 INCH, MATERIAL MACHINED STEEL, APPROVAL UL 514B, CSA C22.2, USED ON LIQUIDTIGHT CORD AND CABLE, CORD SIZE 0.312 TO 0.437 INCH, SIZE 1-5/16 INCH DIA X 1-5/8 INCH L, APPLICATION DRY/WET LOCATION, LIQUIDTIGHT, STRAIN RELIEF
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Male Type; Malleable Iron (Body), Machined Steel (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 0.94 Inch Diameter Size; UL 514B, CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 3/8 Inch Thread Size; 0.312 to 0.437 Inch Cord Size; Label Color Code Yellow; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381449014
• SKU Name: app cg903138s

Resources

• Manufacturer Spec Sheet
