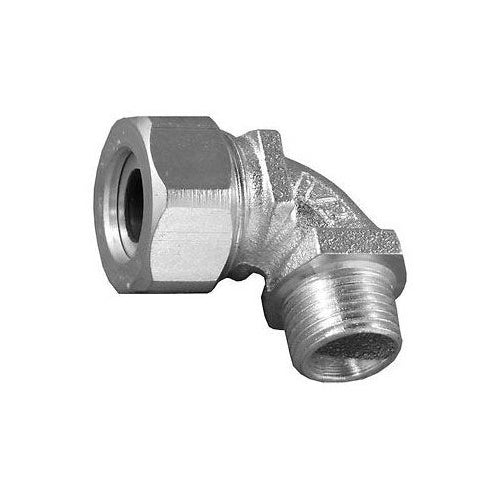

Appleton CG90-5075 3/4" Aluminum 90D Cord Connector

Overview

Appleton CG90-5075 3/4" Aluminum 90D Cord Connector

Product Specifications

• UPC: 78138118975
• Catalog Number: CG90-5075
• Model: CG90
• Type: 90 Degree
• Trade Size: 3/4 Inch
• Material: Cast Aluminum (Body/Cap), Neoprene (Sealing Grommet), Steel (Washer)
• Approval: UL, CSA
• Used On: Wet/Dry Location Sealing Electrical Connection
• Additional Information: Cable Range 0.5 to 0.625 Inch; Diameter 1.38 Inch; Color Coded Label Pink; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC
• Catalog Description: 90 DEG LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 3/4 IN, CONDUCTOR RANGE: 1/2 - 5/8 IN, MATERIAL: CAST ALUMINUM, COLOR: PINK LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, STANDARD: CLASS I, DIVISION 2, CLASS II, DIVISION 1 AND
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Male Type; Cast Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 1.38 Inch Diameter Size; UL 514B, CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 3/4 Inch Thread Size; 0.5 to 0.625 Inch Cord Size; Label Color Code Pink; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381189750
• SKU Name: app cg905075

Resources

• Manufacturer Spec Sheet
