Appleton CG90-7575S 3/4" Steel 90D Cord Connector

Overview

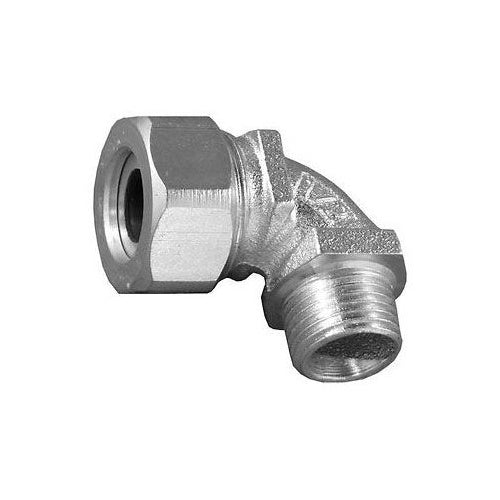

Appleton CG90-7575S 3/4" Steel 90D Cord Connector

Product Specifications

• UPC: 78138144909
• Application: Liquidtight, Strain Relief, Dry/Wet/Hazardous Location
• Additional Information: Color Gray
• Catalog Number: CG90-7575S
• Model: CG90
• Type: 90 Deg Male
• Thread Size: 3/4 Inch
• Material: Malleable Iron Body, Machined Steel Cap, Neoprene Grommet, Steel/Teflon Washer
• Cord Size: 0.75 to 0.875 Inch
• Size: 1.38 Inch Dia
• Approval: UL 514B, CSA C22.2
• Catalog Description: CORD AND CABLE CONNECTOR, TYPE 90 DEG, THREAD SIZE 3/4 INCH, MATERIAL MALLEABLE IRON BODY, MACHINED STEEL CAP, NEOPRENE GROMMET, STEEL/TEFLON WASHER, CORD SIZE 0.75 TO 0.875 INCH, SIZE 1.38 INCH DIA, APPROVAL UL 514B, CSA C22.2, APPLICATION LIQUIDTIGHT, STRAIN RELIEF, DRY/WET/HAZARDOUS LOCATION, COLOR GRAY, ENCLOSURE TYPE CLASS I DIV 2, CLASS II DIV 1 AND 2, CLASS III
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Male Type; Malleable Iron (Body), Machined Steel (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 1.38 Inch Diameter Size; CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 3/4 Inch Thread Size; 0.75 to 0.875 Inch Cord Size; Label Color Code Gray; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381449090
• SKU Name: app cg907575s

Resources

• Manufacturer Spec Sheet
