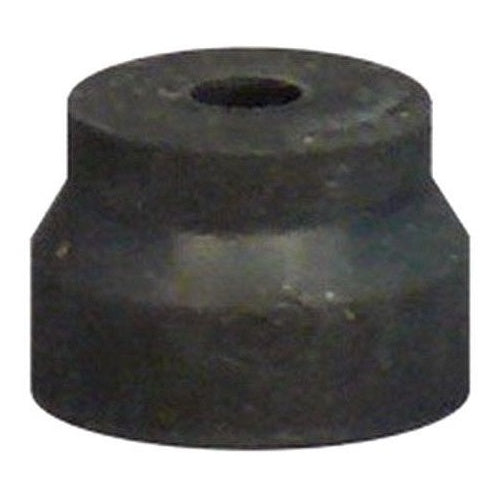

Appleton CGG222 .187-.312 Neo Gland

Overview

Appleton CGG222 .187-.312 Neo Gland

Product Specifications

• UPC: 78138139619
• Catalog Number: CGG222
• Brand Name: Appelton.
• Item: GLAND
• Material: NEOPRENE
• Used On: CABLE
• Additional Information: CABLE RANGE 0.187 TO 0.312 INCH; FOR CONNECTOR HUB SIZE 3/8 INCH AND 1/2 INCH
• Catalog Description: GROMMET, MATERIAL: RUBBER, CONDUCTOR RANGE: 3/16 - 5/16 IN, STANDARD: CLASS I, DIVISION 2, CLASS II, DIVISION 1 AND 2, CLASS III, FOR 3/8 IN HUB STRAIGHT CG-1838 AND 90 DEG CG90-1838, 1/2 IN HUB STRAIGHT CG-1850 CONNECTOR
• Category: Cable & Cord Grips
• Full Technical Description: Rubber (Grommet) Material; UL 514B, CSA C22.2 Approval; Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R Enclosure; 0.187 to 0.312 Inch Cable Outer Diameter; Hub Size 3/8 Inch and 1/2 Inch; Used on Cg/CG90 Series Straight/90 Degree Connector; Application Commercial/Industrial; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cable Gland
• Unspsc: 39121431
• UPC 12 Digit: 781381396196
• SKU Name: app cgg222

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
