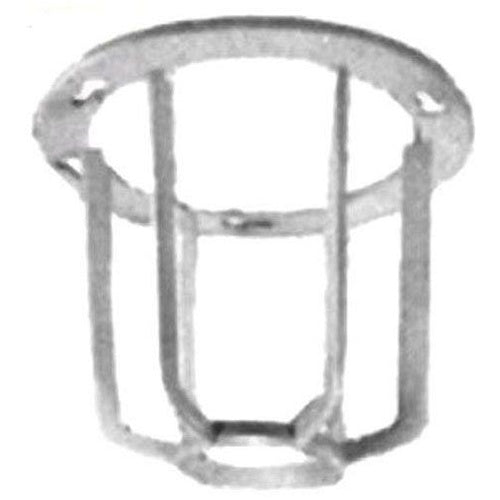

Appleton CJGU15 Guard

Overview

Appleton CJGU15 Guard

Product Specifications

• UPC: 78138160697
• Catalog Number: CJGU15
• Brand Name: Code.Master 2[TM]
• Material: Aluminum
• Used On: HID Luminaire
• Additional Information: Constructional Feature Explosionproof, Dust Ignitionproof; Application Chemical, Petrochemical Plant
• Catalog Description: CODE MASTER 2 GUARD, LAMP TYPE: 50 - 150 WTT MEDIUM HIGH PRESSURE SODIUM, 50 - 175 WTT MEDIUM PULSE START METAL HALIDE, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SOCKET TYPE: MEDIUM, FINISH: EPOXY POWDER COAT, ENCLOSURE: NEMA
• Category: Lighting Guards
• Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum Material; Explosionproof HID Luminaire Used on; 50 to 175 Watt Lamp Wattage; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, Class I Zone 1 and 2 Iib Iia, NEMA 4X, Exd Iib; Application Hazardous Location; Applicable Standard Nec/Cec, UL 844/1598, CSA C22.2
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof HID Lighting Guard
• Unspsc: 39111815
• UPC 12 Digit: 781381606974
• SKU Name: app cjgu15

Resources

• Manufacturer Spec Sheet
