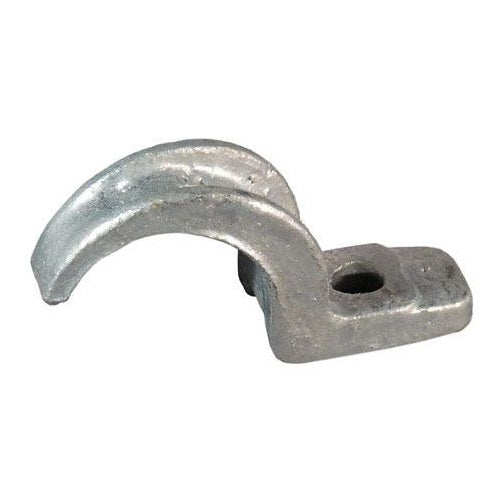

Appleton CL-100MN 1" 1-Hole Malleable ClAMP

Overview

Appleton CL-100MN 1" 1-Hole Malleable Clamp

Product Specifications

• UPC: 78138187574
• Used On: IMC/Rigid Metal Conduit
• Catalog Number: CL-100MN
• Type: 1-Hole
• Trade Size: 1 Inch
• Hole/Bolt Size: 0.25 Inch
• Width: 0.88 Inch
• Height: 1.5 Inch
• Material: Hot Dip Galvanized Malleable Iron
• Approval: CSA C22.2
• Catalog Description: CLAMP, CABLE SIZE: 1 IN, CABLE TYPE: RMC, IMC, EMT, MATERIAL: MALLEABLE IRON, FINISH: HOT DIPPED GALVANIZED, DIMENSIONS: 0.88 IN WIDTH X 1.5 IN HEIGHT, STANDARD: CSA C22.2 NO. 18.4, CSA 065178, FOR USED TO SUPPORT RUNS OF RMC, IMC AND EM
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: 1-Hole Type; Hot Dip Galvanized Malleable Iron Material; 0.88 Inch; 1.5 Inch; Imc/Rigid Metal Conduit Used on; CSA C22.2 Approval; 1 Inch Trade Size; 0.25 Inch Hole/Bolt Size; Application Commercial/Industrial, Hazardous Location; Applicable Standard CEC
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Strap
• Unspsc: 39121701
• UPC 12 Digit: 781381875745
• SKU Name: app cl100mn

Resources

• Manufacturer Spec Sheet
