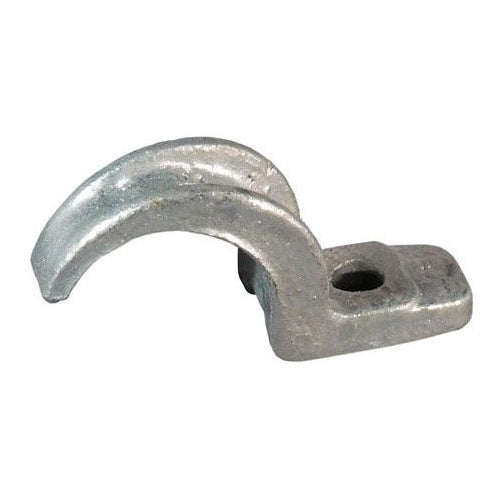

Appleton CL-250MN 2-1/2" 1-Hole Malleable ClAMP

Overview

Appleton CL-250MN 2-1/2" 1-Hole Malleable Clamp

Product Specifications

• UPC: 78138187578
• Used On: Rigid Metal Conduit/IMC
• Catalog Number: CL-250MN
• Type: 1-Hole
• Trade Size: 2-1/2 Inch
• Hole/Bolt Size: 0.5 Inch
• Width: 1.31 Inch
• Height: 3 Inch
• Material: Hot Dip Galvanized Malleable Iron
• Approval: CSA C22.2
• Catalog Description: CLAMP, CABLE SIZE: 2-1/2 IN, CABLE TYPE: RMC, IMC, EMT, MATERIAL: MALLEABLE IRON, FINISH: HOT DIPPED GALVANIZED, DIMENSIONS: 1.31 IN WIDTH X 3 IN HEIGHT, STANDARD: CSA C22.2 NO. 18.4, CSA 065178, FOR USED TO SUPPORT RUNS OF RMC, IMC AND
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: 1-Hole Type; Hot Dip Galvanized Malleable Iron Material; 1.31 Inch; 3 Inch; Imc/Rigid Metal Conduit Used on; CSA C22.2 Approval; 2-1/2 Inch Trade Size; 0.5 Inch Hole/Bolt Size; Application Commercial/Industrial, Hazardous Location; Applicable Standard CEC
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Strap
• Unspsc: 39121701
• UPC 12 Digit: 781381875783
• SKU Name: app cl250mn

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
