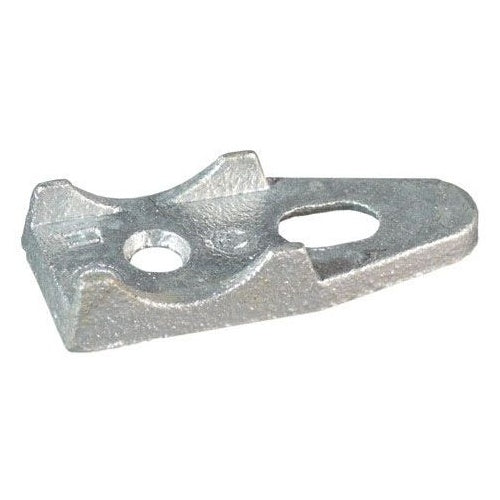

Appleton CLB-100MN 1" Malleable ClAMP Back

Overview

Appleton CLB-100MN 1" Malleable Clamp Back

Product Specifications

• UPC: 78138187586
• Catalog Number: CLB-100MN
• Trade Size: 1 Inch
• Width: 1.31 Inch
• Length: 3.19 Inch
• Material: Hot Dip Galvanized Malleable Iron
• Approval: CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Bolt Diameter 0.25 Inch; Depth 0.56 Inch; Application Commercial and Industrial; Applicable Standard CEC
• Catalog Description: APPLETON CLAMP BACK, SIZE: 1 IN, MATERIAL: MALLEABLE IRON, FINISH: HOT DIPPED GALVANIZED, LENGTH: 3.19 IN, WIDTH: 1.31 IN, HEIGHT: 0.56 IN, BOLT DIAMETER: 1/4 IN, STANDARD: CSA C22.2 NO. 18.4, CSA 065178, FOR USED TO SUPPORT RUNS OF RMC, IMC AND
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Hot Dip Galvanized Malleable Iron Material; 3.19 Inch; 1.31 Inch; Imc/Rigid Metal Conduit Used on; CSA C22.2 Approval; 1 Inch Trade Size; Depth 0.56 Inch; Bolt Diameter 0.25 Inch; Application Commercial/Industrial, Hazardous Location; Applicable Standard CEC
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Spacer/Clamp Back
• Unspsc: 39121701
• UPC 12 Digit: 781381875868
• SKU Name: app clb100mn
