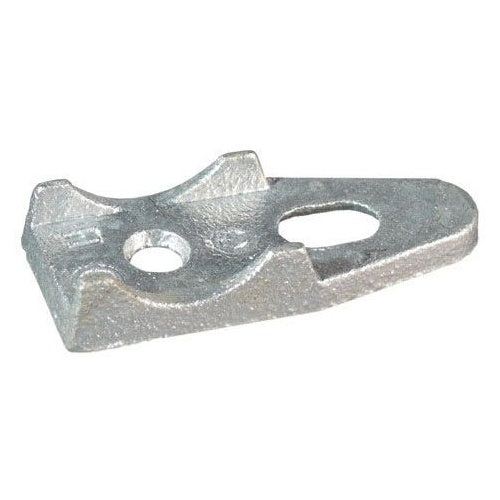

Appleton CLB-125MN 1-1/4" Malleable ClAMP Back

Overview

Appleton CLB-125MN 1-1/4" Malleable Clamp Back

Product Specifications

• UPC: 78138187587
• Catalog Number: CLB-125MN
• Trade Size: 1-1/4 Inch
• Width: 1.44 Inch
• Length: 3.69 Inch
• Material: Hot Dip Galvanized Malleable Iron
• Approval: CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Bolt Diameter 0.38 Inch; Depth 0.75 Inch; Application Commercial and Industrial; Applicable Standard CEC
• Catalog Description: APPLETON CLAMP BACK, SIZE: 1-1/4 IN, MATERIAL: MALLEABLE IRON, FINISH: HOT DIPPED GALVANIZED, LENGTH: 3.69 IN, WIDTH: 1.44 IN, HEIGHT: 3/4 IN, BOLT DIAMETER: 0.38 IN, STANDARD: CSA C22.2 NO. 18.4, CSA 065178, FOR USED TO SUPPORT RUNS OF RMC, IMC
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Hot Dip Galvanized Malleable Iron Material; 3.69 Inch; 1.44 Inch; Imc/Rigid Metal Conduit Used on; CSA C22.2 Approval; 1-1/4 Inch Trade Size; Depth 0.75 Inch; Bolt Diameter 0.38 Inch; Application Commercial/Industrial, Hazardous Location; Applicable Standard CEC
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Spacer/Clamp Back
• Unspsc: 39121701
• UPC 12 Digit: 781381875875
• SKU Name: app clb125mn

Resources

• Manufacturer Spec Sheet
