Appleton CLAMPR23P100 100A ClAMP Ring Grip

Overview

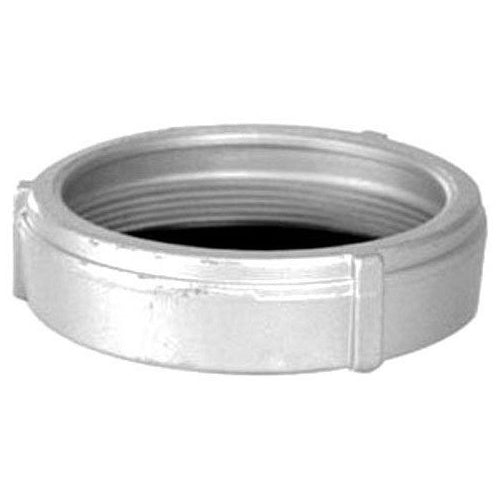

Appleton CLAMPR23P100 100A Clamp Ring Grip

Product Specifications

• UPC: 78138174249
• Catalog Number: CLMPR23P100
• Brand Name: Powertite[R]
• Constructional Feature: Raintight
• Device Rating: 100 Ampere
• Used On: 2/3-Pole ACP Series Pin and Sleeve Plug
• Additional Information: Includes Gasket
• Catalog Description: PIN AND SLEEVE PLUG CLAMPING RING, CONSTRUCTIONAL FEATURE RAINTIGHT, MATERIAL CAST ALUMINUM, DEVICE RATING 100 AMPERE, USED ON 2/3 POLE ACP SERIES PLUG, INCLUDES GASKET
• Category: Pin & Sleeve Devices
• Full Technical Description: Pin and Sleeve Plug Used on; 600 Volt AC 50/400 Hertz, 250 Volt DC, 100 Amp Device Rating; POWERTITE[TM] Brand; Number of Poles 2 and 3; Includes Gasket; Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Locking Ring
• Unspsc: 39121402
• UPC 12 Digit: 781381742498
• SKU Name: app clmpr23p100

Resources

• Manufacturer Spec Sheet
