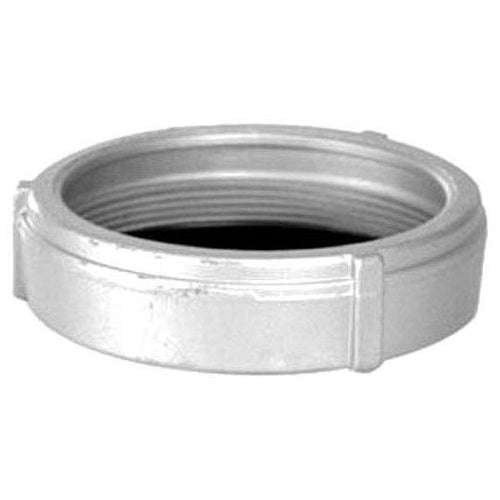

Appleton CLAMPR23P60 60A ClAMP Ring Grip

Overview

Appleton CLAMPR23P60 60A Clamp Ring Grip

Product Specifications

• UPC: 78138174247
• Catalog Number: CLMPR23P60
• Brand Name: Powertite.
• Constructional Feature: RAIN TIGHT
• Device Rating: 60 AMPERE
• Used On: 2/3 POLE ACP SERIES PLUG
• Additional Information: INCLUDES GASKET
• Catalog Description: PIN AND SLEEVE PLUG CLAMPING RING, CONSTRUCTIONAL FEATURE RAINTIGHT, MATERIAL CAST ALUMINUM, DEVICE RATING 60 AMPERE, USED ON 2/3 POLE ACP SERIES PLUG, INCLUDES GASKET
• Category: Pin & Sleeve Devices
• Full Technical Description: Pin and Sleeve Plug Used on; 600 Volt AC 50/400 Hertz, 250 Volt DC, 60 Amp Device Rating; POWERTITE[TM] Brand; Number of Poles 2 and 3; Includes Gasket; Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Locking Ring
• Unspsc: 39121402
• UPC 12 Digit: 781381742474
• SKU Name: app clmpr23p60

Resources

• Manufacturer Spec Sheet
