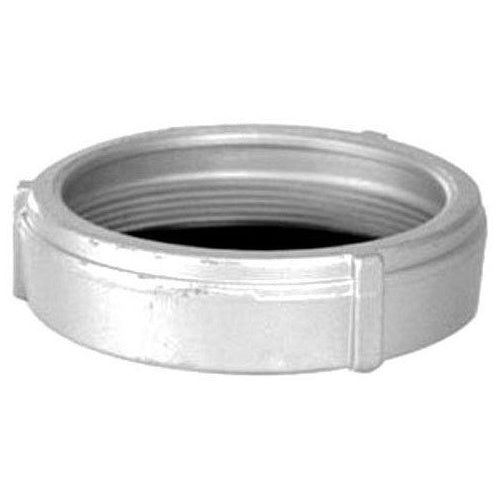

Appleton CLAMPR4P100 100A ClAMP Ring Grip

Overview

Appleton CLAMPR4P100 100A Clamp Ring Grip

Product Specifications

• UPC: 78138174251
• Catalog Number: CLMPR4P100
• Brand Name: Powertite[TM]
• Device Rating: 600 Volt AC 50 to 400 Hertz, 250 Volt DC, 100/150 Amp
• Used On: Pin and Sleeve ACP Plug
• Additional Information: Number of Poles 4; Enclosure Rating NEMA 3/3R/4/4X; Includes Gasket
• Catalog Description: APPLETON ACP SERIES PLUG CLAMPING RING, FOR POWERTITE 100 AND 150 AMP 4-POLE PLUGS
• Category: Pin & Sleeve Devices
• Full Technical Description: Pin and Sleeve Plug Used on; 600 Volt AC 50/400 Hertz, 250 Volt DC, 100/150 Amp Device Rating; POWERTITE[TM] Brand; Number of Poles 4; Includes Gasket; Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Locking Ring
• Unspsc: 39121402
• UPC 12 Digit: 781381742511
• SKU Name: app clmpr4p100

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
