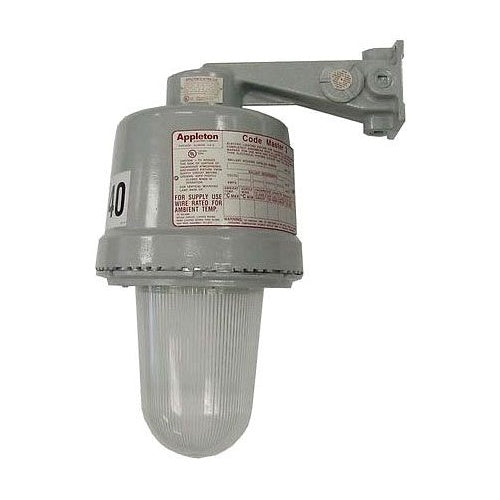

Appleton CMBP400MT 400W Mv Fixture

Overview

Appleton CMBP400MT 400W Mv Fixture

Product Specifications

• UPC: 78138184550
• Housing Material: Copper-Free Aluminum
• Housing Finish: Electrostatically Applied Epoxy Powder Coated
• Globe Material: Prismatic Glass
• Mounting: Hood, Pendant, Ceiling, Bracket, Stanchion
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 844/1598, CSA C22.2
• Additional Information: Application Chemical and Petrochemical Plant, Wet Location
• Catalog Number: CMBP400MT
• Brand Name: Appleton
• Model: CMB
• Lamp Type: Pulse Start Metal Halide
• Lamp Wattage: 400 Watt
• Ballast/Line Voltage: 120/208/240/277 Volt AC
• Ballast Type: Constant Wattage, Multi Tap
• Reflector Type: Fiberglass Reinforced Polyester
• Catalog Description: CODE MASTER 2 FACTORY SEALED HID LUMINAIRE, LAMP TYPE: 400 WTT 34000 LM MOGUL PULSE START METAL HALIDE, LAMP WATTAGE: 400 WTT, VOLTAGE RATING: 120/208/240/277 V, NUMBER OF LAMPS: 1, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM
• Category: Hid Hazardous Location Lighting
• Full Technical Description: UL 844/1598, CSA C22.2 Approval; Multi-Tap, Constant Wattage Autotransformer Ballast Type; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia Iib, Class III, NEMA 4X Enclosure; Mogul Base Pulse Start Metal Halide Lamp Type; 400 Watt Lamp Wattage; Copper-Free Aluminum Housing Material; Electrostatically Applied Gray Epoxy Powder Coated Housing Finish; 120/208/240/277 Volt AC 60 Hertz Ballast/Line Voltage; Aluminum/Fiberglass Reinforced Polyester Reflector Type; Prismatic Glass Globe Material; Code MASTER[TM] 2 Brand; Minimum Power Factor 90 Percent; Constructional Feature Explosionproof/Dust Ignitionproof; Ambient Temperature Rating 104 to 149 Deg F; Application Hazardous Location; Applicable Standard Nec/Cec; C Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof HID Fixture Ballast Body
• Unspsc: 39111524
• UPC 12 Digit: 781381845502
• SKU Name: app cmbp400mt

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
