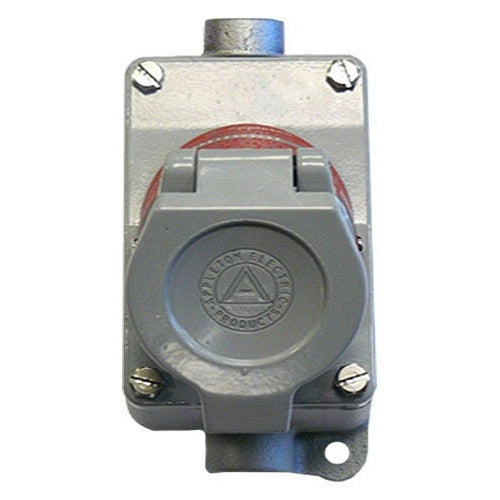

Appleton CPC123100 2W-3P Receptacle

Overview

Appleton CPC123100 2W-3P Receptacle

Product Specifications

• UPC: 78138119615
• Hub Size: 1 INCH
• Box Type: SINGLE GANG
• Mating Plug: CPP
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, NEMA 7M/7C/7D
• Catalog Number: CPC123100
• Brand Name: Appleton.
• Type: FEED THROUGH
• Voltage Rating: 120 TO 240 VAC, 24 VDC
• Current Rating: 20 AMPERE
• Power Rating: 1 HP
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: CPS SERIES 1-GANG RECEPTACLE WITH EFD MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 120 - 240 VAC, 24 VDC, MATERIAL: COPPERFREE (LESS THAN 4/10 OF 1 PCT) ALUMINUM COVER, MALLEABLE IRON MOUNTING BOX, NEMA RATING: NEMA 3RX, 7BCD, MOUNTING: SURFACE MOUNT WITH 1 IN FEED-THRU HUB, CONNECTION: PRESSURE WIRE TERMINAL, MOTOR HORSEPOWER: 1 HP, FINISH: EPOXY POWDER COAT COVER AND TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT) MOUNTING BOX, DIMENSIONS: 3 IN WIDTH X 6.38 IN HEIGHT X 7.11 IN DEPTH, STANDARD: CLASS I, DIVISION 1 AND 2, GROUPS B, C, D, CLASS II, DIVISION 1 AND 2, GROUPS F, G, UL STANDARD: UL 1010 (UL 1203)
• Category: Pin & Sleeve Devices
• Full Technical Description: Feed-Through Type; 1 Inch Hub Size; 2 Wire(S); UL 1010, CSA C22.2 Approval; 120/240 Volt AC, 24 Volt DC Voltage Rating; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group F G, NEMA 7BCD Enclosure; 20 Amp Current Rating; 1 HP Power Rating; 3 Pole(S); 1-Gang Box Type; Overall Dimension 3 Inch Length X 7.11 Inch Width X 5.92 Inch Height; Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron (Mounting Box), Epoxy Powder Coated Copper-Free Aluminum (Cover); Application Air Conditioner, Compressor, Pump, Heater; Applicable Standard Nec/Cec; CPC Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381196154
• SKU Name: app cpc123100
