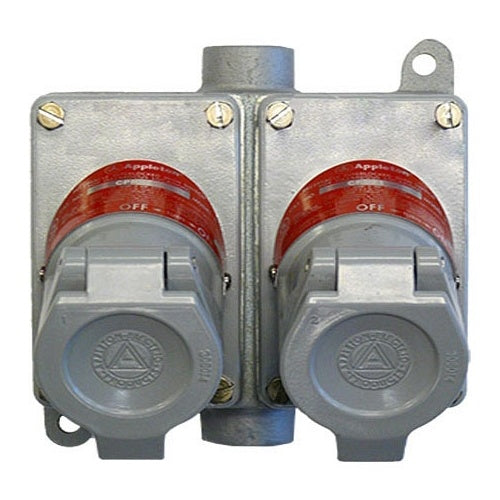

Appleton CPC22350 2-Gang 2W-3P Receptacle

Overview

Appleton CPC22350 2-Gang 2W-3P Receptacle

Product Specifications

• UPC: 78138119620
• Hub Size: 1/2 INCH
• Box Type: TWO GANG
• Mating Plug: CPP
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, NEMA 7M/7C/7D
• Catalog Number: CPC22350
• Brand Name: Appleton.
• Type: FEED THROUGH
• Voltage Rating: 120 TO 240 VAC, 24 VDC
• Current Rating: 20 AMPERE
• Power Rating: 1 HP
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: PIN AND SLEEVE RECEPTACLE ASSEMBLY, TYPE FEED THROUGH, VOLTAGE RATING 120 TO 240 VAC, 24 VDC, CURRENT RATING 20 AMPERE, POWER RATING 1 HP AT 24 VDC, NUMBER OF POLES 3, NUMBER OF WIRES 2, HUB SIZE 1/2 INCH, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II, DIV 1 AND 2 GROUP F G, NEMA 3RX/7BCD, APPROVAL UL 1010/1203, CSA C22.2, APPLICATION LIGHTING SYSTEMS, CONVEYORS, HEATERS, MOTOR-GENERATOR SETS, AIR CONDITIONERS, COMPRESSORS, PUMPS, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF
• Category: Pin & Sleeve Devices
• Full Technical Description: Feed-Through Type; 1/2 Inch Hub Size; 2 Wire(S); UL 1010, CSA C22.2 Approval; 120/240 Volt AC, 24 Volt DC Voltage Rating; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group F G, NEMA 7BCD Enclosure; 20 Amp Current Rating; 1 HP Power Rating; 3 Pole(S); 2-Gang Box Type; Overall Dimension 6.19 Inch Length X 7.11 Inch Width X 6.38 Inch Height; Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron (Mounting Box), Epoxy Powder Coated Copper-Free Aluminum (Cover); Application Air Conditioner, Compressor, Pump, Heater; Applicable Standard Nec/Cec; CPC Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381196208
• SKU Name: app cpc22350
