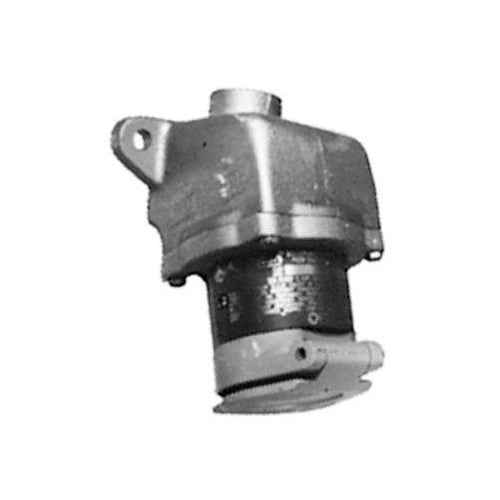

Appleton CPP2023 2W-3P Plug

Overview

Appleton CPP2023 2W-3P Plug

Product Specifications

• UPC: 78138167336
• Approval: UL 1010/E10784/E81751, CSA C22.2
• Additional Information: Constructional Feature Explosionproof; With Pressure Terminal
• Catalog Number: CPP2023
• Model: CPP
• Number Of Poles: 3
• Number Of Wires: 2
• Minimum Cable Outer Diameter: 0.536 Inch
• Maximum Cable Outer Diameter: 0.639 Inch
• Mating Receptacle: CPS
• Enclosure: Class I Div 1 and 2 Group B/C/D, Class II Div 1 and 2 Group F/G, NEMA 3R/3X/7B/7C/7D
• Catalog Description: CPP SERIES PLUG, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 120 - 240 VAC, 24 VDC, MATERIAL: COPPERFREE ALUMINUM, NEMA RATING: NEMA 3RX, 7BCD, CONNECTION: PRESSURE WIRE TERMINAL, MOTOR HORSEPOWER: 1 HP, PLUG CABLE DIAMETER: 0.536 - 0.639 IN, DIMENSIONS: 1.94 IN WIDTH X 1.94 IN HEIGHT X 3.94 IN DEPTH, STANDARD: CLASS I, DIVISION 1 AND 2, GROUPS B, C, D, CLASS II, DIVISION 1 AND 2, GROUPS F, G, UL STANDARD: UL 1010 (UL 1203), UL LISTED: E10784, E81751, CSA STANDARD: C22.2 NO. 25, C22.2 NO. 30, C22.2 NO. 159, CSA CERTIFIED: 038644, FOR CPS RECEPTACLES
• Category: Pin & Sleeve Devices
• Full Technical Description: Neoprene Material; 0.536 Inch min. Cable Outer Diameter; 0.639 Inch Max. Cable Outer Diameter; 2 Wire(S); UL 1010, CSA C22.2 Approval; 120/240 Volt AC, 24 Volt DC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, NEMA 7BCD Enclosure; 20 Amp Current Rating; 1 HP Power Rating; 3 Pole(S); Cps Mating Receptacle; Overall Dimension 3.94 Inch Length X 1.94 Inch Height; Application Air Conditioner, Compressor, Heater; Applicable Standard Nec/Cec; CPP Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381673365
• SKU Name: app cpp2023
