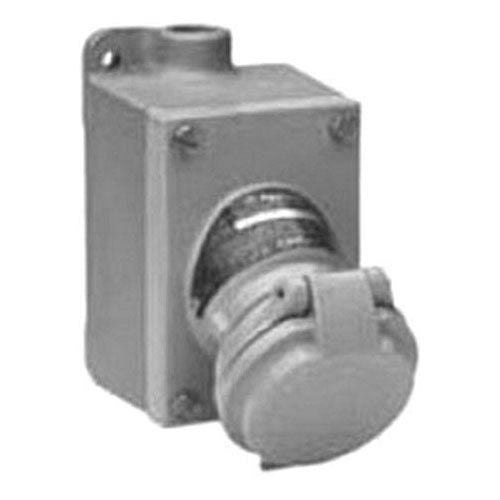

Appleton CPS152201SA 20A Receptacle

Overview

Appleton CPS152201SA 20A Receptacle

Product Specifications

• Application: For CPP516 Plug
• Sub Brand: Contender
• Type: CPS Series 1-Gang Receptacle With Mounting Box
• Voltage Rating: 250//18 VAC//VDC
• Brand Name: Appleton
• Connection: Pressure Wire Terminal
• Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover And Mounting Box
• Mounting: Surface Mount With 3/4 IN Dead-End Hub
• Number Of Poles: 3
• Number Of Wires: 2
• Special Features: Explosionproof, delayed action; Covers are UL Listed when used with Contender series mounting bodies; CPS factory sealed: external seals not required; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; Captive hex head slotted, stainless steel screws; Receptacles are supplied with pressure terminal connectors; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Fiberglass reinforced thermoset polyester insulating blocks
• Standard: Class I, Division 1 And 2, Groups C, D; UL 1010 (UL 1203), UL 894; UL Listed: E10784
• Catalog Description: CONTENDER CPS SERIES 1-GANG RECEPTACLE WITH MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 125 - 250 VAC, 18 VDC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM COVER AND MOUNTING BOX, MOUNTING: SURFACE MOUNT WITH 3/4 IN DEAD-END HUB, CONNECTION: PRESSURE WIRE TERMINAL, MOTOR HORSEPOWER: 1 HP, FINISH: EPOXY POWDER COAT COVER AND MOUNTING BOX, DIMENSIONS: 3.5 IN WIDTH X 6.06 IN HEIGHT X 6.19 IN DEPTH, STANDARD: CLASS I, DIVISION 1 AND 2, GROUPS C, D, UL 1010 (UL 1203), UL 894, UL LISTED: E10784, FOR CPP516 PLUG
• Category: Pin & Sleeve Devices
• Full Technical Description: Dead End Type; 3/4 Inch Hub Size; 2 Wire(S); UL 894/1010, UL (Canada and Us) Approval; 125/250 Volt AC Voltage Rating; Class I Div 1 and 2 Group C D Enclosure; 20 Amp Current Rating; 1 HP at 18 Volt DC Power Rating; 3 Pole(S); 1-Gang Box Type; CONTENDER[TM] Brand; Overall Dimension 3.5 Inch Width X 6.19 Inch Depth X 6.06 Inch Height; Material Epoxy Powder Coated Copper-Free Aluminum (Mounting Box/Cover); Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Sta
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381090605
• SKU Name: app cps152201sa
