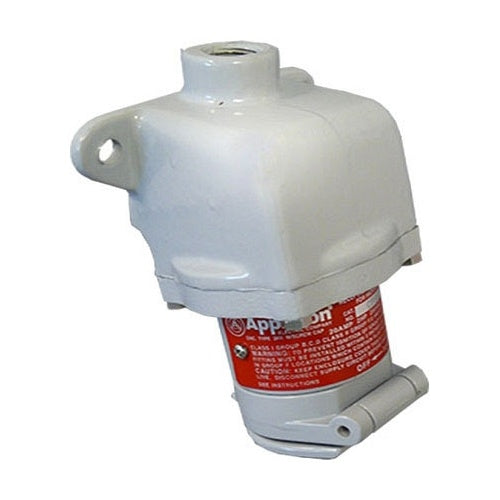

Appleton CPSA-2375 2W-3P Receptacle

Overview

Appleton CPSA-2375 2W-3P Receptacle

Product Specifications

• UPC: 78138119885
• Mating Plug: CPP
• Enclosure: Class I Div 1 and 2 Group C D
• Approval: UL1010, CSA C22.2
• Additional Information: Application LightingSystem, Conveyor, Heater, Motor-GeneratorSet, AirConditioner, Compressor, Pump
• Catalog Number: CPSA-2375
• Type: Dead End, 50 Deg Angle
• Voltage Rating: 120 to 240 VAC, 24 VDC
• Current Rating: 20 Ampere
• Power Rating: 1 HP
• Number Of Poles: 3
• Number Of Wires: 2
• Hub Size: 3/4 Inch
• Catalog Description: 15 DEG ANGLE TYPE CPS SERIES RECEPTACLE, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 120 - 240 VAC, 24 VDC, MATERIAL: COPPERFREE (LESS THAN 4/10 OF 1 PCT) ALUMINUM COVER, MALLEABLE IRON MOUNTING BOX, NEMA RATING: NEMA 3RX, 7BCD, MOUNTING: SURFACE MOUNT WITH 3/4 IN HUB, CONNECTION: PRESSURE WIRE TERMINAL, MOTOR HORSEPOWER: 1 HP, FINISH: EPOXY POWDER COAT COVER AND TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT) MOUNTING BOX, DIMENSIONS: 4-3/4 IN WIDTH X 6.02 IN HEIGHT X 4 IN DEPTH, STANDARD: CLASS I, DIVISION 1 AND 2, GROUPS B, C, D, CLASS II, DIVISION 1 AND 2, GROUPS F, G, UL STANDARD: UL 1010 (UL 1203)
• Category: Pin & Sleeve Devices
• Full Technical Description: Dead End, 15 Degree Type; 3/4 Inch Hub Size; 2 Wire(S); UL 1010, CSA C22.2 Approval; 120/240 Volt AC, 24 Volt DC Voltage Rating; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group F G, NEMA 7BCD Enclosure; 20 Amp Current Rating; 1 HP Power Rating; 3 Pole(S); Cpp Mating Plug; Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Standard Nec/Cec; CPS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381198851
• SKU Name: app cpsa2375
