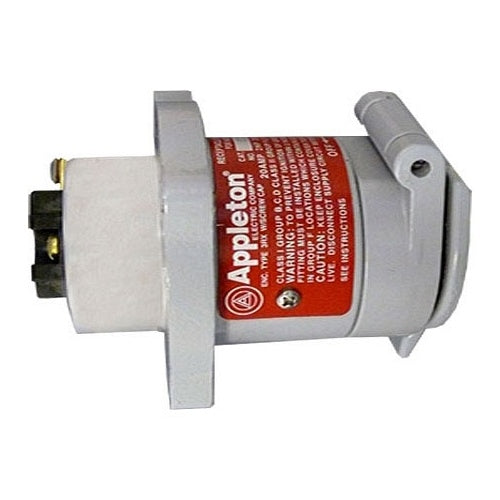

Appleton CPSR-23 2W-3P Receptacle Only

Overview

Appleton CPSR-23 2W-3P Receptacle Only

Product Specifications

• UPC: 78138120325
• Cover Type: SPRING
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM
• Mating Plug: CPP
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, NEMA 7C/7D
• Catalog Number: CPSR-23
• Brand Name: Appleton.
• Type: SINGLE GANG/TWO GANG EFD
• Voltage Rating: 120 TO 240 VAC, 24 VDC
• Current Rating: 20 AMPERE
• Power Rating: 1 HP
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: APPLETON CPS SERIES REPLACEMENT RECEPTACLE, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 120 - 240 VAC, 24 VDC, MATERIAL: COPPERFREE (LESS THAN 4/10 OF 1 PCT) ALUMINUM COVER, NEMA RATING: NEMA 3RX, 7BCD, MOUNTIN
• Category: Pin & Sleeve Devices
• Full Technical Description: Dead Front Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); UL 894/1010 Approval; 120/240 Volt AC, 24 Volt DC Voltage Rating; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group F G, NEMA 7BCD Enclosure; 20 Amp Current Rating; Spring Cover Type; 1 HP Power Rating; 3 Pole(S); Cpp Mating Plug; Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Standard Nec/Cec; CPS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781381203258
• SKU Name: app cpsr23
