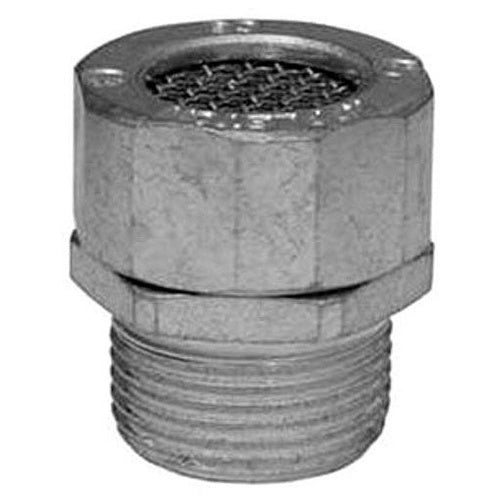

Appleton CRN50S 1/2" Steel Loc Drain

Overview

Appleton CRN50S 1/2" Steel Loc Drain

Product Specifications

• UPC: 78138178567
• Catalog Number: CRN50S
• Type: Drain
• Thread Size: 1/2 Inch
• Material: Zinc Electroplated Steel
• Enclosure: Class I Div 1 and 2 Group B/C/D, Class II Div 1 and 2 Group E/F/G, Class III
• Approval: UL 886/E34997, CSA C22.2
• Additional Information: Constructional Feature Explosionproof, Dust-Ignitionproof; Application Hazardous Location
• Catalog Description: DRAIN, SIZE: 1/2 IN, MATERIAL: STEEL, FINISH: ZINC ELECTROPLATE, CONNECTION: TAPERED MALE THREADED, STANDARD: CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, DIVISION 2
• Category: Enclosure Drain & Pressure Breathers
• Full Technical Description: Combination Drain/Breather, Universal Type; Zinc Electroplated Steel Material; CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1/2 Inch Thread Size; Constructional Feature Explosionproof/Dust Ignitionproof; Application Hazardous Location; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Drain/Breather
• Unspsc: 39121311
• UPC 12 Digit: 781381785679
• SKU Name: app crn50s

Resources

• Manufacturer Spec Sheet
