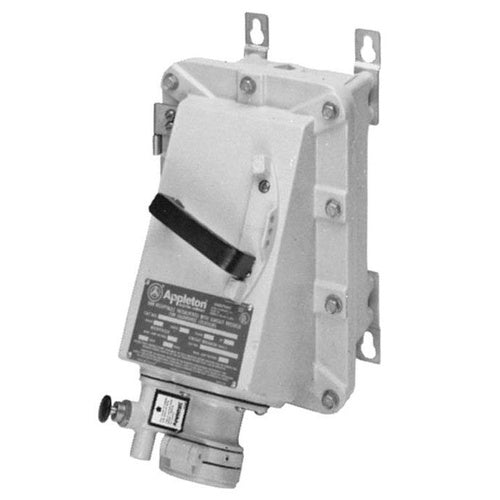

Appleton DBR1023DS Receptacle w/Disconnect Switch

Overview

Appleton DBR1023DS Receptacle w/Disconnect Switch

Product Specifications

• UPC: 78138147464
• Number Of Wires: 2
• Door Type: WEATHER PROOF SPRING COVER
• Fuse Provision: NON FUSIBLE
• Grounding Style: SHELL, EXTRA POLE
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM ALLOY
• Enclosure: NEMA 3/3R
• Additional Information: APPLICATION AIR CONDITIONER, COMPRESSOR, CONVEYOR, HEATER, LIGHTING SYSTEM, MOTOR GENERATOR SET, PUMP
• Catalog Number: DBR1023DS
• Brand Name: Appleton[R]
• Model: DBR
• Type: INTERLOCKED
• Constructional Feature: DUST PROOF, IGNITION PROOF
• Voltage Rating: 600 VAC
• Current Rating: 100 AMPERE
• Number Of Poles: 2
• Catalog Description: RECEPTACLE AND DISCONNECT SWITCH, TYPE INTERLOCKED, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 100 AMPERE, NUMBER OF POLES 3, NUMBER OF WIRES 2, DOOR TYPE SPRING DOOR, FUSE PROVISION NON-FUSIBLE, GROUNDING STYLE 2, SHELL, EXTRA POLE, MATERIAL COPPER-FREE ALUMINUM, ENCLOSURE CLASS II DIV 1 AND 2 GROUP F G, CLASS III, NEMA 3/3R/4/4X/9FG
• Category: Pin & Sleeve Devices
• Full Technical Description: Interlocked Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); 600 Volt AC Voltage Rating; Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/9FG Enclosure; 100 Amp Current Rating; 3 Pole(S); Dust Ignitionproof; Non-Fusible Fuse Provision; Weatherproof Spring; 2, Shell, Extra Pole Grounding Style; Application Hazardous Location, Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Standard Nec/Cec, UL 1010/1203/894/1682; DBR Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 781381474641
• SKU Name: app dbr1023ds

Resources

• Manufacturer Spec Sheet
