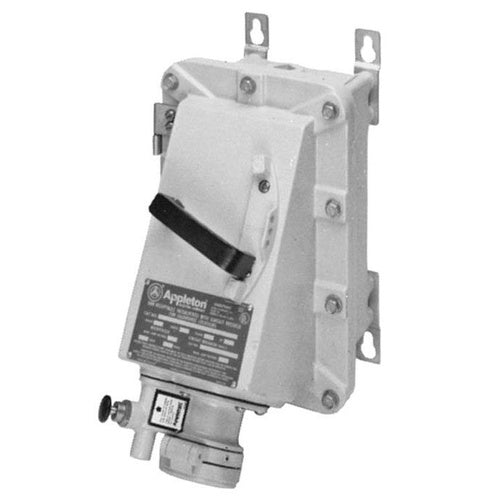

Appleton DBR6034DS Receptacle w/Disconnect Switch

Overview

Appleton DBR6034DS Receptacle w/Disconnect Switch

Product Specifications

• UPC: 78138151291
• Door Type: Weatherproof Spring Cover
• Fuse Provision: Non-Fusible
• Grounding Style: 2, Shell, Extra Pole
• Material: Epoxy Powder Coated Copper Free Aluminum
• Enclosure: Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/9F/9G
• Additional Information: Approval UL 1010/1203/894/1682,/1686; Application Lighting System, Conveyor, Heater, Motor-Generator Set, Air Conditioner, Compressor, Pump
• Catalog Number: DBR6034DS
• Model: DBR
• Type: Interlocked
• Constructional Feature: Dust Ignitionproof
• Voltage Rating: 600 VAC
• Current Rating: 60 Ampere
• Number Of Poles: 4
• Number Of Wires: 3
• Catalog Description: DBR SERIES RECEPTACLE WITH MOUNTING BOX, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, AMPERAGE RATING: 60 AMP, VOLTAGE RATING: 600 VAC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, NEMA RATING: NEMA 3, 3R, 4, 4X, 9FG, MOUNTING: SURFACE MOUNT, MOTOR HORSEPOWER: 60 HP AT 600 VAC, FINISH: EPOXY POWDER COAT, DIMENSIONS: 9.08 IN WIDTH X 16.57 IN HEIGHT X 14.14 IN DEPTH, STANDARD: CLASS II, DIVISION 1 AND 2, GROUPS F, G, CLASS III, UL 1010 (UL 1203), UL 894, UL 1682, UL 1686, FOR ACP AND CPH PLUGS
• Category: Pin & Sleeve Devices
• Full Technical Description: Interlocked Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); 600 Volt AC Voltage Rating; Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/9FG Enclosure; 60 Amp Current Rating; 4 Pole(S); Dust Ignitionproof; Non-Fusible Fuse Provision; Weatherproof Spring; 2, Shell, Extra Pole Grounding Style; Application Hazardous Location, Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Standard Nec/Cec, UL 1010/1203/894/1682; DBR Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 781381512916
• SKU Name: app dbr6034ds
