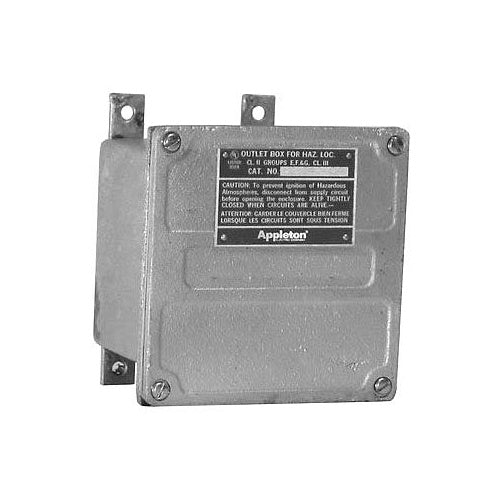

Appleton DTX060604 6X6X4 Iron Junction Box

Overview

Appleton DTX060604 6X6X4 Iron Junction Box

Product Specifications

• UPC: 78138184346
• Depth: 4-7/32 INCH
• Depth In Inch: 4.21875
• Material: CAST IRON
• Finish: HOT DIP GALVANIZED
• Enclosure: NEMA 4/9EFG
• Mounting: LUGS, SURFACE
• Cover Type: GASKETED, BOLT ON
• Approval: UL 886
• Height In Inch Uom: in
• Width In Inch Uom: in
• Catalog Number: DTX060604
• Depth In Inch Uom: in
• Additional Information: APPLICATION COAL STORAGE UNIT, GRAIN ELEVATOR, TEXTILE FACTORY, TISSUE PAPER MILL; CONSTRUCTIONAL FEATURE DUST IGNITION PROOF, WATER TIGHT
• Brand Name: Appleton.
• Model: DTX
• Type: FLANGED
• Height: 7-13/16 INCH
• Height In Inch: 7.8125
• Width: 7-13/16 INCH
• Width In Inch: 7.8125
• Catalog Description: CAST JUNCTION BOX, HUB SIZE 3/4 INCH, OVERALL SIZE 7.81 INCH L X 7.81 INCH W X 4.41 INCH D, INNER SIZE 6 INCH L X 6 INCH W X 4 INCH D, WALL THICKNESS 0.22 INCH (TOP), 0.19 INCH (COVER), 0.22 INCH (BACK), COVER TYPE GASKETED BOLT-ON, ENCLOSURE CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/9EFG, BODY MATERIAL CAST IRON, BODY FINISH HOT DIP GALVANIZED, COVER MATERIAL CAST IRON, COVER FINISH HOT DIP GALVANIZED, MOUNTING SURFACE WITH LUG, APPROVAL UL 886/1203, APPLICATION COAL STORAGE UNIT, GRAIN ELEVATOR, TEXTILE FACTORY, TISSUE PAPER MILL, CONSTRUCTIONAL FEATURE DUST-IGNITIONPROOF, WATERTIGHT
• Category: Cast Boxes
• Full Technical Description: 7.81 Inch Length X 7.81 Inch Width X 4.41 Inch Depth Overall Size; 6 Inch Length X 6 Inch Width X 4 Inch Depth Inner Size; 3/4 Inch Hub Size; UL 886 Approval; Surface Mounting; Class II Div 1 and 2 Group E F G, Class III, NEMA 4/9FG Enclosure; Gasketed Cover Type; Cast Iron Body Material; Cast Iron Cover Material; 0.25 Inch Wall Thickness; Hot Dip Galvanized Body Finish; 6 Inch Cover Opening Diameter; Hot Dip Galvanized Cover Finish; Constructional Feature Dust Ignitionproof, Water Tight; Application Grain Elevator, Grain Storage Area, Paper Mill, Coal Storage Facility, Textile Factory; Applicable Standard Nec/Cec; DTX Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 781381843461
• SKU Name: app dtx060604
