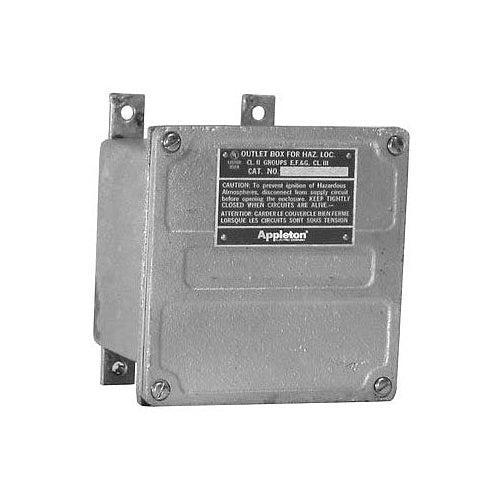

Appleton DTX080806 8X8X6 Iron Junction Box

Overview

Appleton DTX080806 8X8X6 Iron Junction Box

Product Specifications

• UPC: 78138184354
• Enclosure: Class II Division 1 and 2 Group E F G, Class III, NEMA 4/9EFG
• Body Material: Cast Iron
• Body Finish: Hot Dip Galvanized
• Cover Material: Cast Iron
• Cover Finish: Hot Dip Galvanized
• Mounting: Surface
• Approval: UL 886
• Additional Information: Application Coal Storage Unit, Grain Elevator, Textile Factory, Tissue Paper Mill; Constructional Feature Dust, Ignitionproof, Watertight
• Catalog Number: DTX080806
• Model: DTX
• Hub Size: 3/4 Inch
• Overall Size: 9.81 Inch L x 9.81 Inch W x 6.47 Inch D
• Inner Size: 8 Inch L x 8 Inch W x 6 Inch D
• Wall Thickness: 0.22 Inch (Top), 0.25 Inch (Back), 0.22 Inch (Cover)
• Cover Type: Gasketed Bolt-On
• Cover Opening Diameter: 8 Inch
• Catalog Description: CAST JUNCTION BOX, HUB SIZE 3/4 INCH, OVERALL SIZE 9.81 INCH L X 9.81 INCH W X 6.47 INCH D, INNER SIZE 8 INCH L X 8 INCH W X 6 INCH D, WALL THICKNESS 0.22 INCH (TOP), 0.25 INCH (COVER), 0.22 INCH (BACK), COVER TYPE GASKETED BOLT-ON, ENCLOSURE CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/9EFG, BODY MATERIAL CAST IRON, BODY FINISH HOT DIP GALVANIZED, COVER MATERIAL CAST IRON, COVER FINISH HOT DIP GALVANIZED, MOUNTING SURFACE WITH LUG, APPROVAL UL 886/1203, APPLICATION COAL STORAGE UNIT, GRAIN ELEVATOR, TEXTILE FACTORY, TISSUE PAPER MILL, CONSTRUCTIONAL FEATURE DUST-IGNITIONPROOF, WATERTIGHT
• Category: Cast Boxes
• Full Technical Description: 9.81 Inch Length X 9.81 Inch Width X 6.47 Inch Depth Overall Size; 8 Inch Length X 8 Inch Width X 6 Inch Depth Inner Size; 3/4 Inch Hub Size; UL 886 Approval; Surface Mounting; Class II Div 1 and 2 Group E F G, Class III, NEMA 4/9FG Enclosure; Gasketed Cover Type; Cast Iron Body Material; Cast Iron Cover Material; 0.25 Inch Wall Thickness; Hot Dip Galvanized Body Finish; 8 Inch Cover Opening Diameter; Hot Dip Galvanized Cover Finish; Constructional Feature Dust Ignitionproof, Water Tight; Application Grain Elevator, Grain Storage Area, Paper Mill, Coal Storage Facility, Textile Factory; Applicable Standard Nec/Cec; DTX Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 781381843546
• SKU Name: app dtx080806
