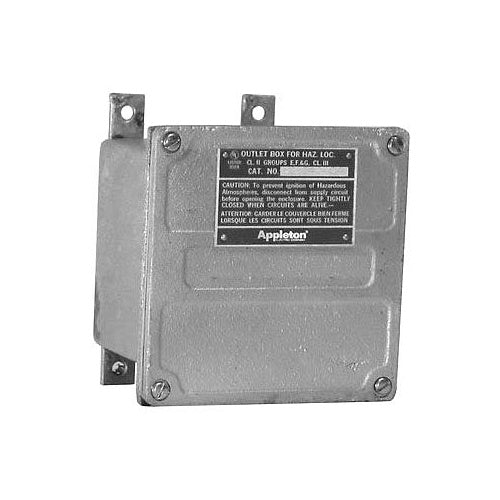

Appleton DTX101004 10X10X4 Iron Junction Box

Overview

Appleton DTX101004 10X10X4 Iron Junction Box

Product Specifications

• UPC: 78138184361
• Depth: 4-1/4 INCH
• Depth In Inch: 4.25
• Material: CAST IRON
• Finish: HOT DIP GALVANIZED
• Enclosure: NEMA 4/9EFG
• Mounting: LUGS, SURFACE
• Cover Type: GASKETED, BOLT ON
• Approval: UL 886
• Height In Inch Uom: in
• Width In Inch Uom: in
• Catalog Number: DTX101004
• Depth In Inch Uom: in
• Additional Information: APPLICATION COAL STORAGE UNIT, GRAIN ELEVATOR, TEXTILE FACTORY, TISSUE PAPER MILL; CONSTRUCTIONAL FEATURE DUST IGNITION PROOF, WATER TIGHT
• Brand Name: Appleton.
• Model: DTX
• Type: FLANGED
• Height: 12-1/16 INCH
• Height In Inch: 12.0625
• Width: 10-1/16 INCH
• Width In Inch: 10.0625
• Catalog Description: CAST JUNCTION BOX, HUB SIZE 3/4 INCH, OVERALL SIZE 120.06 INCH L X 10.06 INCH W X 40.53 INCH D, INNER SIZE 10 INCH L X 10 INCH W X 4 INCH D, WALL THICKNESS 0.25 INCH (TOP), 0.28 INCH (COVER), 0.25 INCH (BACK), COVER TYPE GASKETED BOLT-ON, ENCLOSURE CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/9EFG, BODY MATERIAL CAST IRON, BODY FINISH HOT DIP GALVANIZED, COVER MATERIAL CAST IRON, COVER FINISH HOT DIP GALVANIZED, MOUNTING SURFACE WITH LUG, APPROVAL UL 886/1203, APPLICATION COAL STORAGE UNIT, GRAIN ELEVATOR, TEXTILE FACTORY, TISSUE PAPER MILL, CONSTRUCTIONAL FEATURE DUST-IGNITIONPROOF, WATERTIGHT
• Category: Cast Boxes
• Full Technical Description: 120.06 Inch Length X 10.06 Inch Width X 40.53 Inch Depth Overall Size; 10 Inch Length X 10 Inch Width X 4 Inch Depth Inner Size; 3/4 Inch Hub Size; UL 886 Approval; Surface Mounting; Class II Div 1 and 2 Group E F G, Class III, NEMA 4/9FG Enclosure; Gasketed Cover Type; Cast Iron Body Material; Cast Iron Cover Material; 0.25 Inch Wall Thickness; Hot Dip Galvanized Body Finish; 10 Inch Cover Opening Diameter; Hot Dip Galvanized Cover Finish; Constructional Feature Dust Ignitionproof, Water Tight; Application Grain Elevator, Grain Storage Area, Paper Mill, Coal Storage Facility, Textile Factory; Applicable Standard Nec/Cec; DTX Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 781381843614
• SKU Name: app dtx101004

Resources

• Manufacturer Spec Sheet
