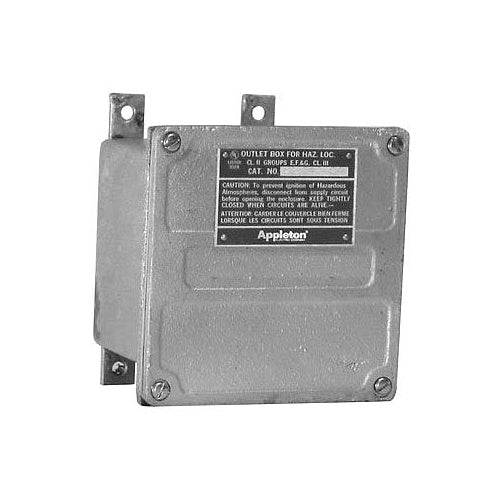

Appleton DTX121208 12X12X8 Iron Junction Box

Overview

Appleton DTX121208 12X12X8 Iron Junction Box

Product Specifications

• UPC: 78138184376
• Enclosure: Class II Division 1 and 2 Group E F G, Class III, NEMA 4/9EFG
• Body Material: Cast Iron
• Body Finish: Hot Dip Galvanized
• Cover Material: Cast Iron
• Cover Finish: Hot Dip Galvanized
• Mounting: Surface
• Approval: UL 886
• Additional Information: Application Coal Storage Unit, Grain Elevator, Textile Factory, Tissue Paper Mill; Constructional Feature Dust, Ignitionproof, Watertight
• Catalog Number: DTX121208
• Model: DTX
• Hub Size: 2 Inch
• Overall Size: 14.06 Inch L x 14.06 Inch W x 8.63 Inch D
• Inner Size: 12 Inch L x 12 Inch W x 8 Inch D
• Wall Thickness: 0.31 Inch (Top), 0.31 Inch (Back), 0.31 Inch (Cover)
• Cover Type: Gasketed Bolt-On
• Cover Opening Diameter: 12 Inch
• Catalog Description: CAST JUNCTION BOX, HUB SIZE 2 INCH, OVERALL SIZE 14.06 INCH L X 14.06 INCH W X 8.63 INCH D, INNER SIZE 12 INCH L X 12 INCH W X 8 INCH D, WALL THICKNESS 0.31 INCH (TOP), 0.31 INCH (COVER), 0.31 INCH (BACK), COVER TYPE GASKETED BOLT-ON, ENCLOSURE CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/9EFG, BODY MATERIAL CAST IRON, BODY FINISH HOT DIP GALVANIZED, COVER MATERIAL CAST IRON, COVER FINISH HOT DIP GALVANIZED, MOUNTING SURFACE WITH LUG, APPROVAL UL 886/1203, APPLICATION COAL STORAGE UNIT, GRAIN ELEVATOR, TEXTILE FACTORY, TISSUE PAPER MILL, CONSTRUCTIONAL FEATURE DUST-IGNITIONPROOF, WATERTIGHT
• Category: Cast Boxes
• Full Technical Description: 14.06 Inch Length X 14.06 Inch Width X 8.63 Inch Depth Overall Size; 12 Inch Length X 12 Inch Width X 8 Inch Depth Inner Size; 2 Inch Hub Size; UL 886 Approval; Surface Mounting; Class II Div 1 and 2 Group E F G, Class III, NEMA 4/9FG Enclosure; Gasketed Cover Type; Cast Iron Body Material; Cast Iron Cover Material; 0.31 Inch Wall Thickness; Hot Dip Galvanized Body Finish; 12 Inch Cover Opening Diameter; Hot Dip Galvanized Cover Finish; Constructional Feature Dust Ignitionproof, Water Tight; Application Grain Elevator, Grain Storage Area, Paper Mill, Coal Storage Facility, Textile Factory; Applicable Standard Nec/Cec; DTX Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 781381843768
• SKU Name: app dtx121208
