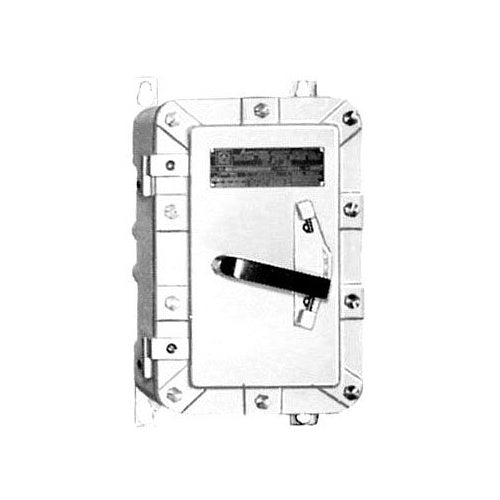

Appleton EB1EH2W50 Explosion-Proof Enclosure w/Circuit Breaker

Overview

Appleton EB1EH2W50 Explosion-Proof Enclosure w/Circuit Breaker

Product Specifications

• UPC: 78138110428
• Current Rating: 50 AMPERE
• Number Of Poles: 2
• Hub Location: FEED THROUGH
• Enclosure: NEMA 3R/7B/7C/7D/9E/9F/9G, CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III
• Enclosure Material: COPPER FREE ALUMINUM
• Enclosure Finish: 2 COAT EPOXY ENAMEL
• Shaft/Handle Material: PASSIVATED STAINLESS STEEL
• Catalog Number: EB1EH2W50
• Brand Name: Appleton[R]
• Model: EB
• Type: BOLTED ENCLOSURE
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Breaker Type: EHD, CUTLER HAMMER/WESTINGHOUSE
• Trip Type: THERMAL MAGNETIC
• Voltage Rating: 480 VAC AT 60 HZ/250 VDC
• Catalog Description: ENCLOSED CIRCUIT BREAKER, TYPE BOLTED ENCLOSURE, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, BREAKER TYPE EHD, TRIP TYPE THERMAL MAGNETIC, VOLTAGE RATING 480 VAC/250 VDC, CURRENT RATING 50 AMPERE, NUMBER OF POLES 2, HUB LOCATION FEED THROUGH, ENCLOSURE NEMA 3R/7B/7C/7D/9E/9F/9G, ENCLOSURE MATERIAL COPPER-FREE ALUMINUM, ENCLOSURE FINISH 2 COAT EPOXY ENAMEL, SHAFT/HANDLE MATERIAL STAINLESS STEEL, MOUNTING SURFACE, APPROVAL UL 1203, APPLICATIONS CORROSIVE ATMOSPHERE, HAZARDOUS LOCATION, REFINERY, CHEMICAL PLANTS, PETROCHEMICAL PLANTS, PROCESSING PLANTS, SHAFT/BUSHING MATERIAL STAINLESS STEEL
• Category: Enclosed 2 Pole Circuit Breakers
• Full Technical Description: Bolted Enclosure Type; (2) 3/4 Inch Hub Size; Copper-Free Aluminum Enclosure Material; UL 1203 Approval; 480 Volt AC 60 Hertz, 250 Volt DC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3R/4X/7BCD/9EFG Enclosure; 50 Amp Current Rating; 2 Pole(S); Explosionproof, Dust Ignitionproof; Epoxy Enamel Coated Enclosure Finish; Feed-Through Hub Location; Cutler Hammer, Ehd Breaker Type; Non-Interchangeable, Thermal Magnetic Trip Type; Passivated 300 Stainless Steel Shaft Shaft/Handle Material; Tap Size 1-1/2 Inch; Material Passivated 300 Stainless Steel (Bushing/Exposed Hardware); Application Indoor and Outdoor; Applicable Standard Nec/Cec; EB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Enclosed Circuit Breaker
• Unspsc: 39121601
• UPC 12 Digit: 781381104289
• SKU Name: app eb1eh2w50
