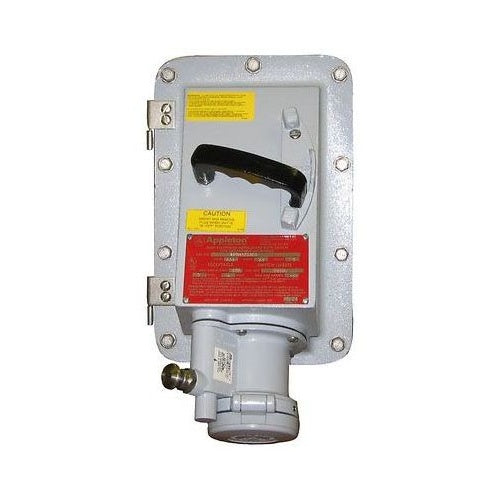

Appleton EBRH6034DS 60A 3W4P Disconnect Switch

Overview

Appleton EBRH6034DS 60A 3W4P Disconnect Switch

Product Specifications

• Application: For ACP And CPH Plugs
• Special Features: Includes 3-pole 150 AMP FD circuit breaker and molded case switch; Interlocked circuit breaker provides interlocked connect and disconnect operation as well as short circuit and thermal time delay overload protection; Explosionproof, dust-Ignitionproof; Weatherproof spring cover; Energized receptacle contacts deeply recessed to reduce danger of accidental touching; Spring door keeps dust out of receptacle when plug is not in use, screw cap also supplied; Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Contacts have beryllium copper wire springs; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; 1-1/2 NPT tapped conduit openings; one top to bottom; Fiber glass reinforced polyester insulating blocks;
• Standard: Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E79132, E10784, E313360
• Type: EBRH Series Receptacle With Mounting Box
• Voltage Rating: 600 VAC
• Brand Name: Appleton
• Connection: Pressure Wire Terminal
• Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum
• Mounting: Surface Mount
• Nema Rating: NEMA 3, 3R, 4, 4X, 7CD, 9FG
• Number Of Poles: 4
• Number Of Wires: 3
• Phase: 3
• Catalog Description: EBRH SERIES RECEPTACLE WITH MOUNTING BOX, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, AMPERAGE RATING: 60 AMP, VOLTAGE RATING: 600 VAC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, NEMA RATING: NEMA 3, 3R, 4, 4X, 7CD
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: Interlocked Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); 600 Volt AC, 250 Volt DC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/7CD/9FG Enclosure; 60 Amp Current Rating; 4 Pole(S); Explosionproof, Dust Ignitionproof; (1) 1-1/2 Inch Top and (2) 1-1/2 Inch Bottom Hub Type; Non-Fusible Fuse Provision; Weatherproof Spring; 2, Shell, Extra Pole Grounding Style; Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Standard Nec/Cec, UL 1010/1203/894/1682; EBRH Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 781381513487
• SKU Name: app ebrh6034ds
